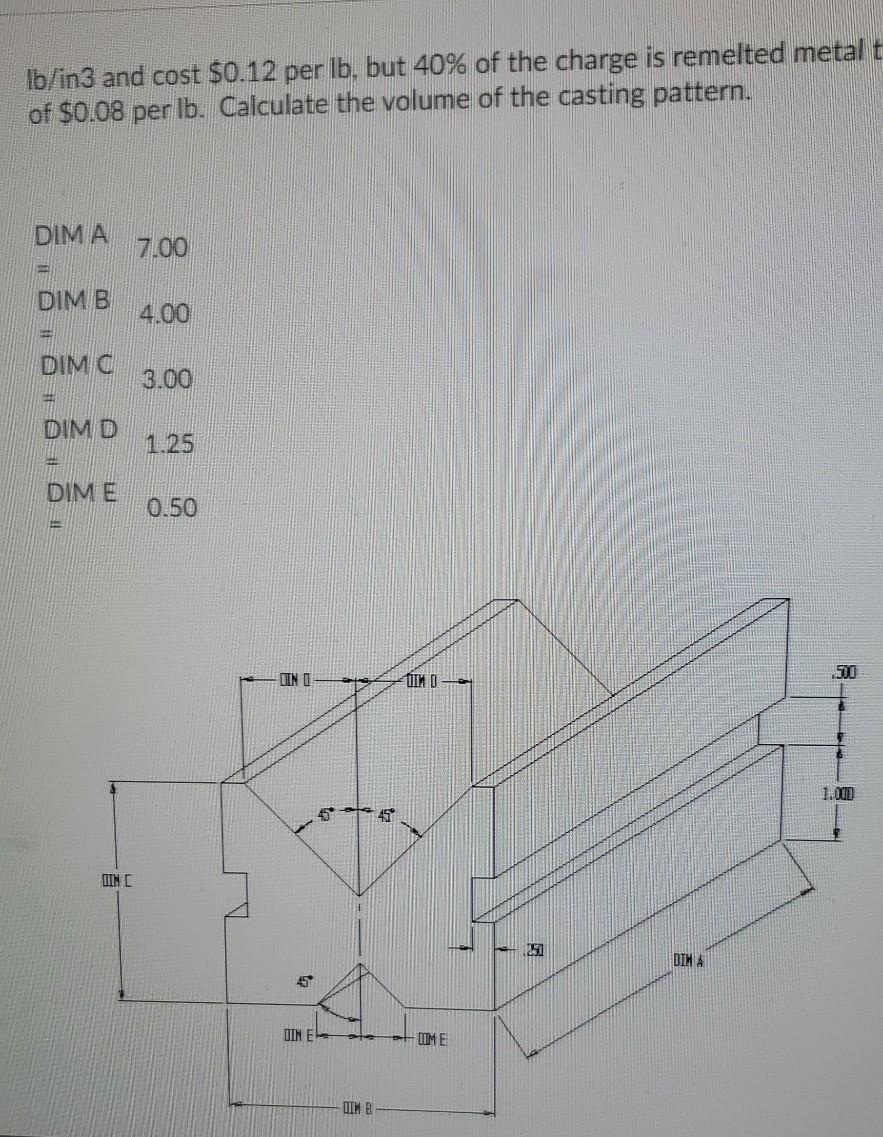

Question 1 (5 points) Consider the figure below where the finished dimensions are shown. The V-block is manufactured from cast iron. Because hot metal occupies a greater volume than cold, a wood pattern is made using a shrink rule of 0.125" per foot for the green sand casting. A 5.0% allowance on the finished shape is given to cover extra stock for finishing all faces, and a 3.0 degree draft allowance is made on the vertical sides for pattern removal. The casting does not include the 1/4" X 1/2" slot on each side as these are machined into the block later. The as-cast material has a density of 0.26 lb/in3 and cost $0.12 per lb, but 40% of the charge is remelted metal that has a cost of $0.08 per lb. Calculate the volume of the casting pattern. DIMA 7.00 DIMB 4.00 DIM c 3.00 DIM D 1.25 DIM E 0.50 DINO .500 1.000 lb/in3 and cost $0.12 per lb, but 40% of the charge is remelted metalt of $0.08 per lb. Calculate the volume of the casting pattern. DIMA 7.00 DIMB 4.00 DIM G 3.00 DIM D 1.25 DIM E 0.50 10 DINI UIK D 1.000 45 DIN C 29 DIMA DIN E LIME WIMB
