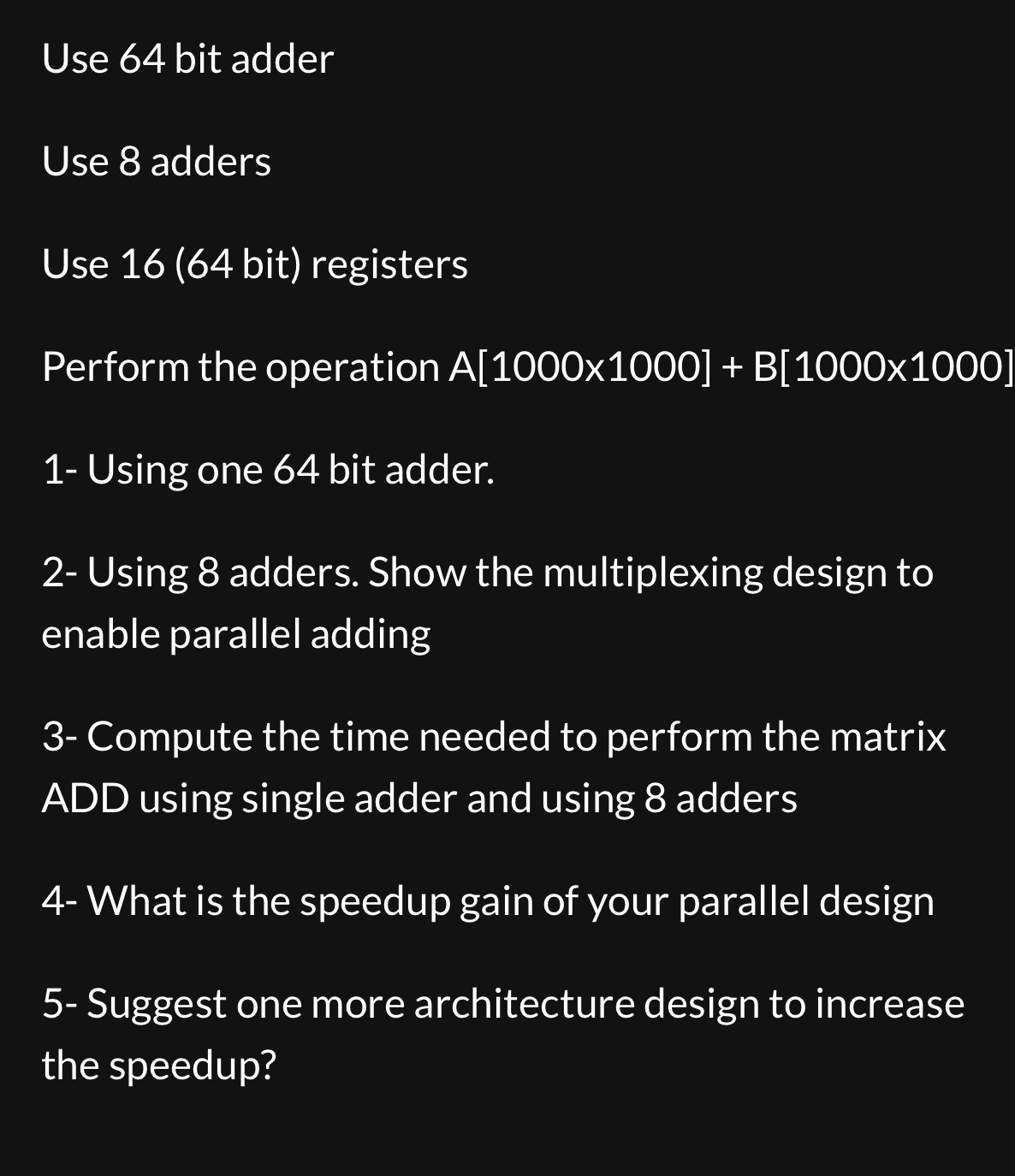

Question: Use 6 4 bit adder Use 8 adders Use 1 6 ( 6 4 bit ) registers Perform the operation A [ 1 0 0

Use 64 bit adder
Use 8 adders
Use 16(64 bit) registers
Perform the operation A[10001000]+B[10001000]
1- Using one 64 bit adder.
2- Using 8 adders. Show the multiplexing design to enable parallel adding
3- Compute the time needed to perform the matrix ADD using single adder and using 8 adders
4- What is the speedup gain of your parallel design
5- Suggest one more architecture design to increase the speedup?
Use 64 bit adder Use 8 adders Use 16(64 bit) registers

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
