Question: Use a 74LS151 to implement the following expression: Y = A'2A'1A'0 + A'2A1A0 + A2A'1A0 + A2A1A'0 use A2, A1, A0, 0 and 1 (which

Use a 74LS151 to implement the following expression:

Y = A'2A'1A'0 + A'2A1A0 + A2A'1A0 + A2A1A'0

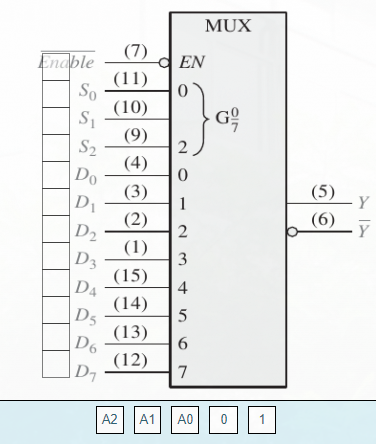

Use a 74LS151 to implement the following expression: Y = A'2A'1A'0 +

use A2, A1, A0, 0 and 1 (which are enclosed in a square) to form the answer

MUX EN 0 G 2 0 (7) (11) (10) (9) (4) (3) (2) (1) (15) (14) (13) (12) 1 Endble So Si S2 DO D D2 D3 D4 DS D D (5) (6) Y Y a + 4 5 6 7 A2 A1 0 0 0 1
