Use CircuitVerse (https//circuitverse.org/) to simulate the design given below.

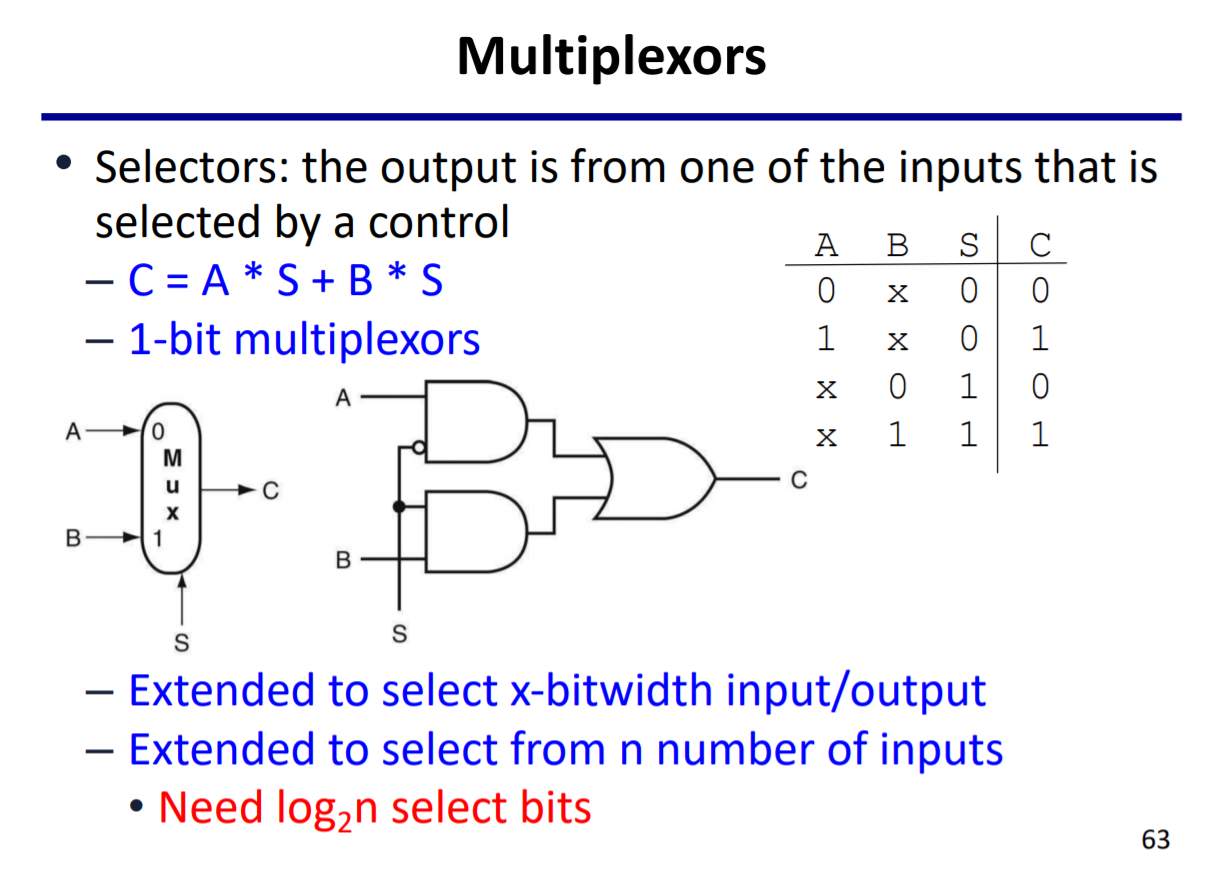

Slide 63: Refers to the question above.

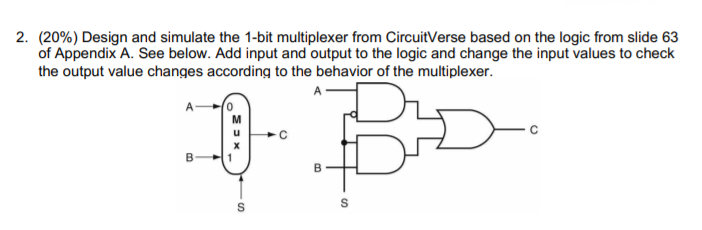

2. (20%) Design and simulate the 1-bit multiplexer from CircuitVerse based on the logic from slide 63 of Appendix A. See below. Add input and output to the logic and change the input values to check the output value changes according to the behavior of the multiplexer. AO u H B- 1 Multiplexors Selectors: the output is from one of the inputs that is selected by a control A BSC O x 0 0 1-bit multiplexors 1 x 0 1 X 0 1 0 - 1 1 1 A--a Extended to select x-bitwidth input/output Extended to select from n number of inputs Need log n select bits 2. (20%) Design and simulate the 1-bit multiplexer from CircuitVerse based on the logic from slide 63 of Appendix A. See below. Add input and output to the logic and change the input values to check the output value changes according to the behavior of the multiplexer. AO u H B- 1 Multiplexors Selectors: the output is from one of the inputs that is selected by a control A BSC O x 0 0 1-bit multiplexors 1 x 0 1 X 0 1 0 - 1 1 1 A--a Extended to select x-bitwidth input/output Extended to select from n number of inputs Need log n select bits
