Question: Use conjugate beam method and virtual work method to solve the following problems. ( Beam ) ( 1 ) Find B ' B L '

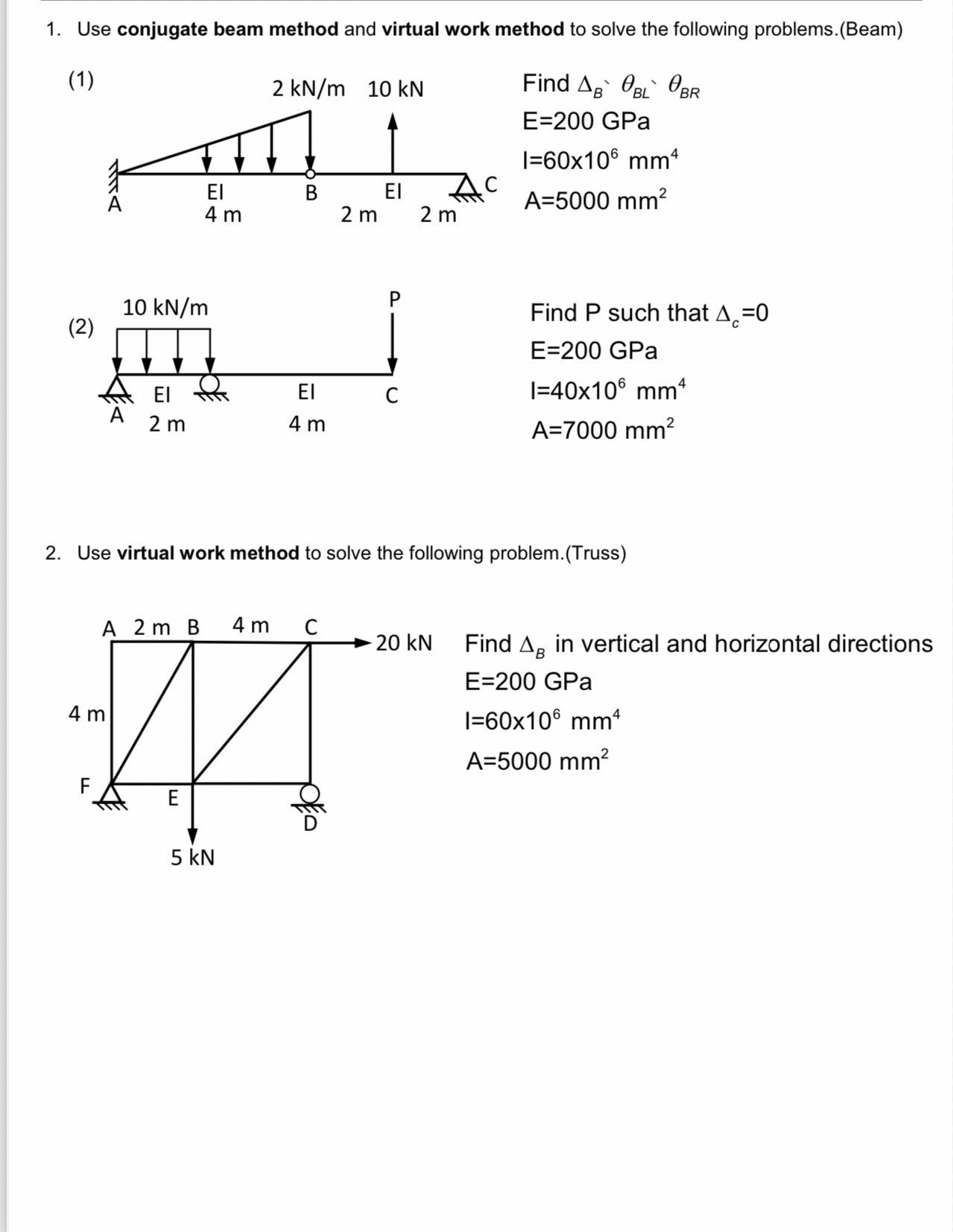

Use conjugate beam method and virtual work method to solve the following problems.(Beam)
(1)
Find B'BL'BR
E=200GPa
I=60106mm4
A=5000mm2
Find P such that c=0
E=200GPa
I=40106mm4
A=7000mm2
Use virtual work method to solve the following problem.(Truss)
Find B in vertical and horizontal directions
E=200GPa
I=60106mm4
A=5000mm2
Use conjugate beam method and virtual work method
