Question: Use Kirchoff's loop rule and Capacitor equations in simple terms please Question 8: PHYS 102 Exam 3, Module 2 A circuit is constructed with three

Use Kirchoff's loop rule and Capacitor equations in simple terms please

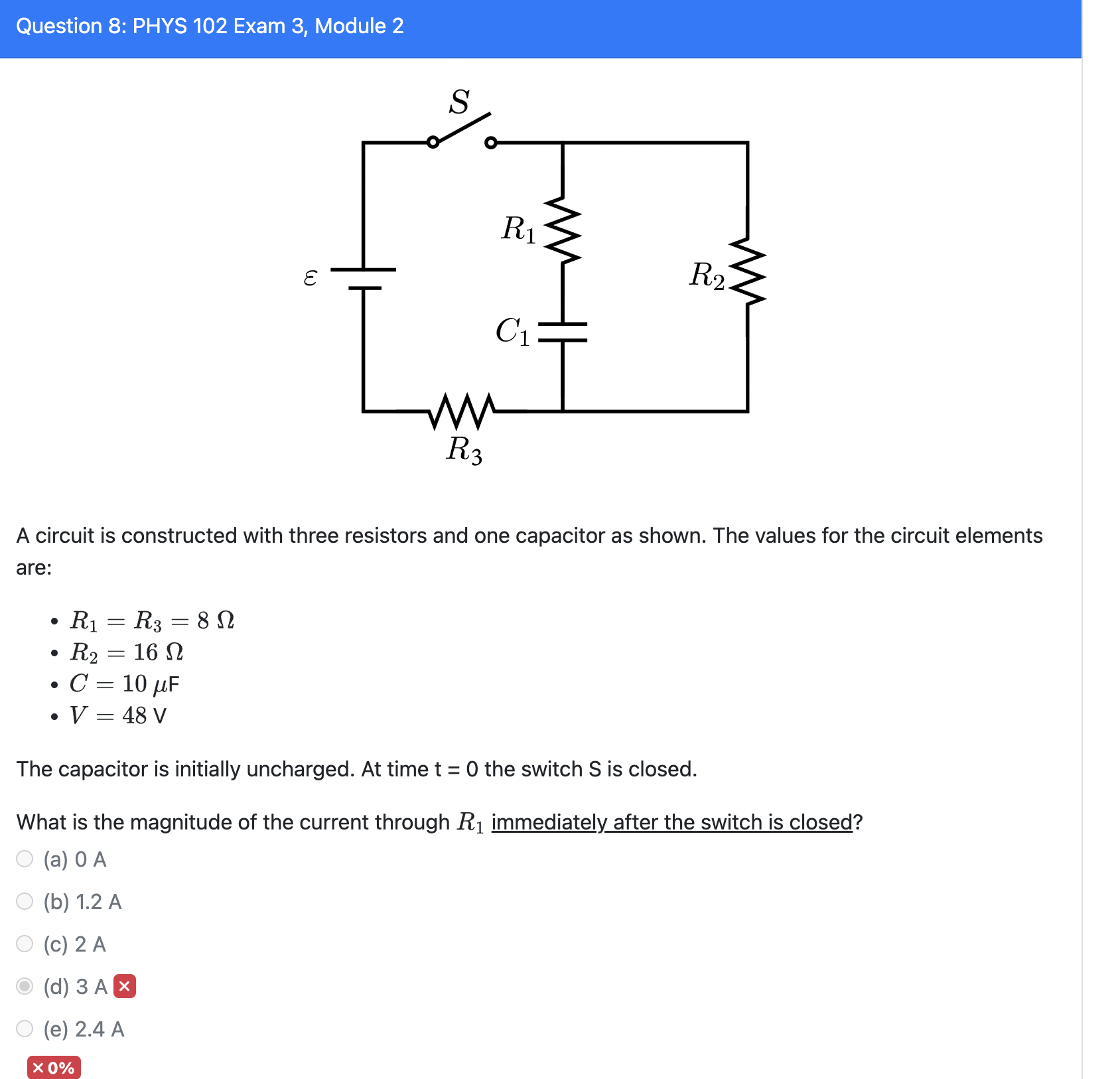

Question 8: PHYS 102 Exam 3, Module 2 A circuit is constructed with three resistors and one capacitor as shown. The values for the circuit elements are: -R1:R3:80 0R2:169 ~C=10,u.F ~V=48V The capacitor is initially uncharged. At time t = 0 the switch 5 is closed. What is the magnitude of the current through R1 immediately after the switch is closed? (a) O A (b) 1.2 A (c) 2 A (d) 3 A. (e) 2.4 A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
