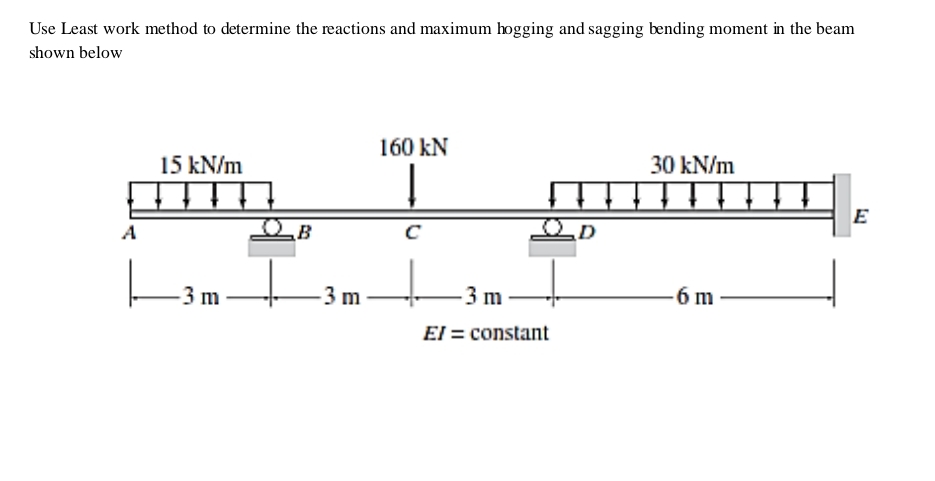

Question: Use Least work method to determine the reactions and maximum hogging and sagging bending moment in the beam shown below

Use Least work method to determine the reactions and maximum hogging and sagging bending moment in the beam shown below
Use Least work method to determine the reactions

Step by Step Solution

There are 3 Steps involved in it
