Question: Use mesh method to calculate v _ ( 0 ) ( t ) = xcos ( 1 0 0 t + Y ) in the

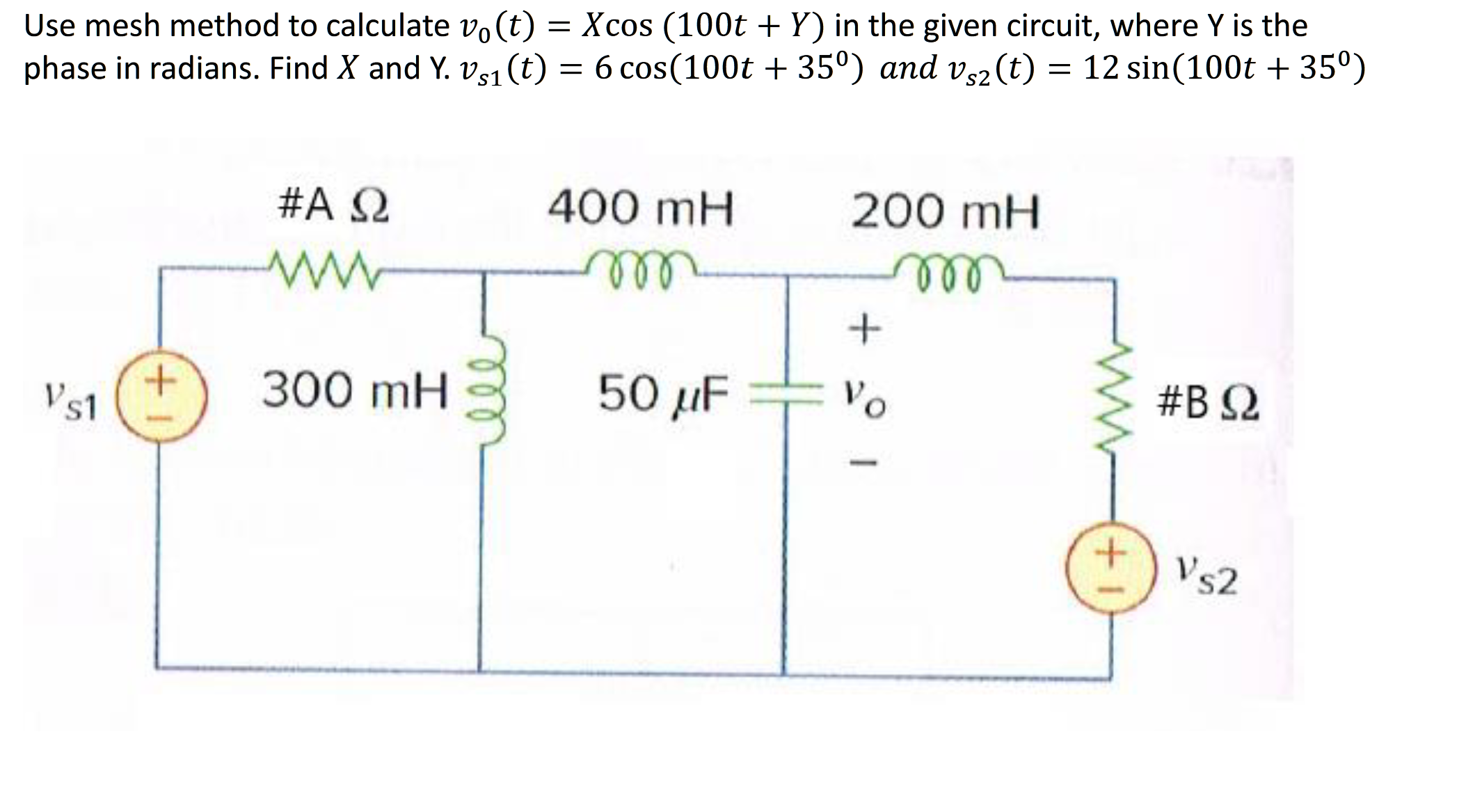

Use mesh method to calculate v_(0)(t)=xcos(100t+Y) in the given circuit, where Y is the
phase in radians. Find x and Y . v_(s1)(t)=6cos(100t+35\deg ) and v_(s2)(t)=12sin(100t+35\deg )
#A=60
#B=10
When solving, please be clear on how to solve the angle with j portion since I don't understand how to do it.
Use mesh method to calculate v _ ( 0 ) ( t ) =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
