use minimal spanning tree method

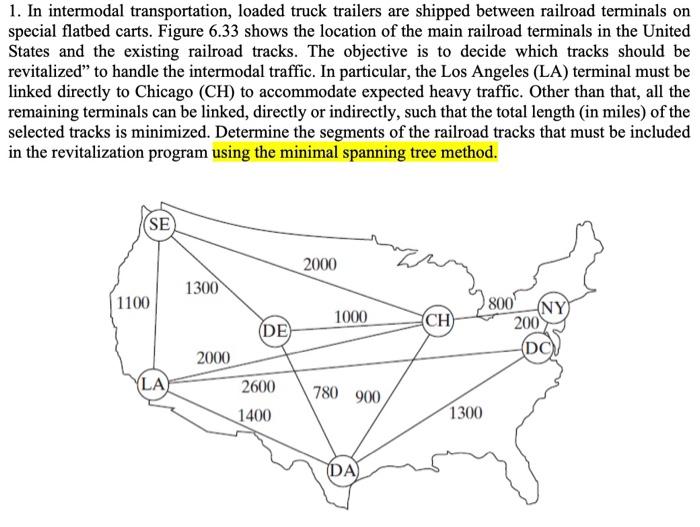

1. In intermodal transportation, loaded truck trailers are shipped between railroad terminals on special flatbed carts. Figure 6.33 shows the location of the main railroad terminals in the United States and the existing railroad tracks. The objective is to decide which tracks should be revitalized" to handle the intermodal traffic. In particular, the Los Angeles (LA) terminal must be linked directly to Chicago (CH) to accommodate expected heavy traffic. Other than that, all the remaining terminals can be linked, directly or indirectly, such that the total length (in miles) of the selected tracks is minimized. Determine the segments of the railroad tracks that must be included in the revitalization program using the minimal spanning tree method. SE 2000 800' (CH) 1100 (LA) 1300 2000 (DE 2600 1400 1000 780 900 (DA) 1300 200 (DC)
