Question: Use this link https://phet.colorado.edu/sims/html/circuit-construction-kit-ac-virtual-lab/latest/circuit-construction-kit-ac-virtual-lab_en.html Build the following circuit on the Phet. a.) Find the voltage dropped across each resistor. b.) Find the current going to

Use this link https://phet.colorado.edu/sims/html/circuit-construction-kit-ac-virtual-lab/latest/circuit-construction-kit-ac-virtual-lab_en.html

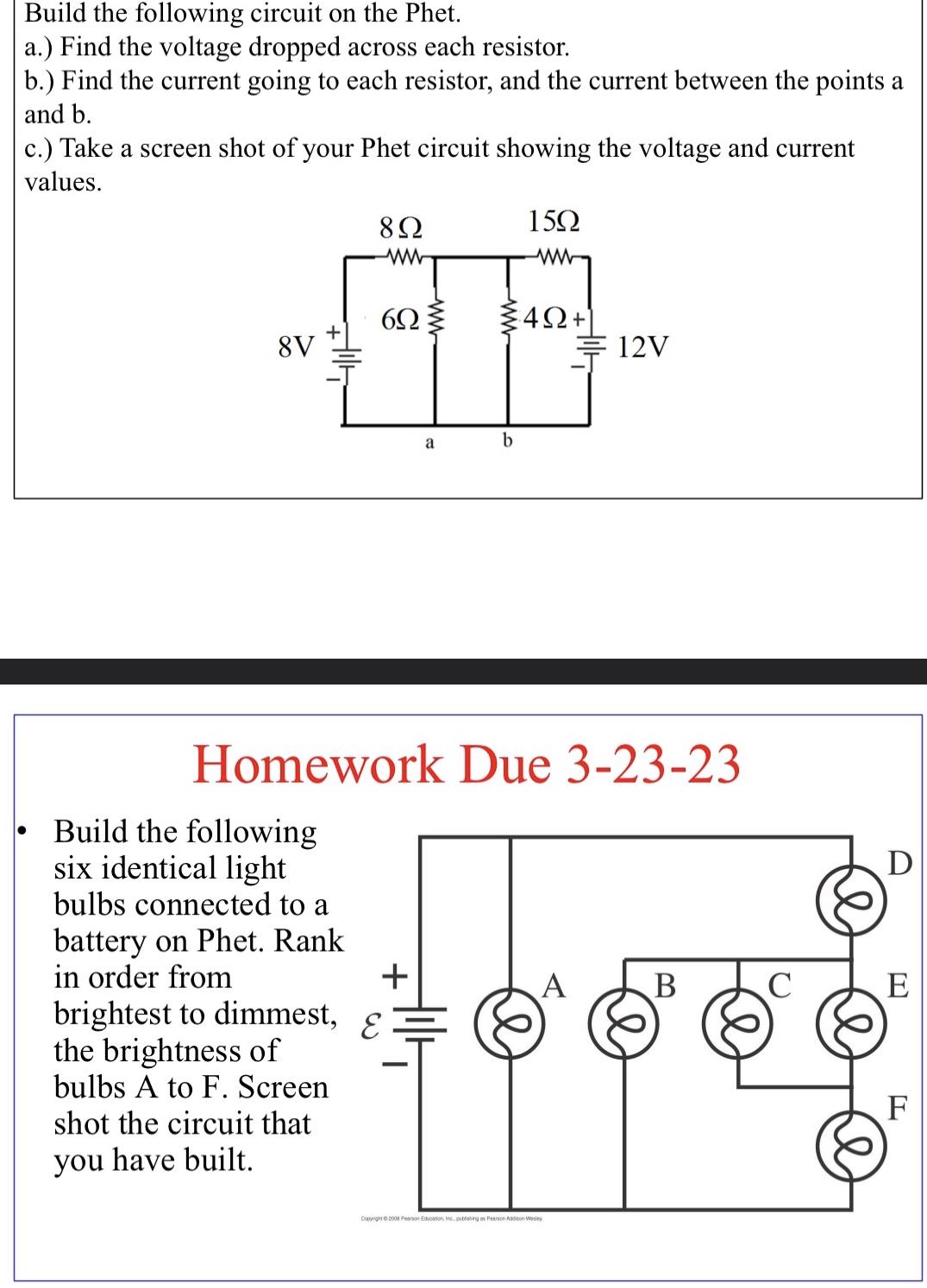

Build the following circuit on the Phet. a.) Find the voltage dropped across each resistor. b.) Find the current going to each resistor, and the current between the points a and b. G.) Take a screen shot of your Phet circuit showing the voltage and current values. 89 159 Homework Due 3-23-23 Build the following six identical light bulbs connected to a battery on Phet. Rank in order from + brightest to dimmest, 8 ; the brightness of bulbs A to F. Screen shot the circuit that you have built
