Question: Using a Siemens S300 PLC, design a control system to control the system described. The operation of the system can be summarized as follows: A

Using a Siemens S300 PLC, design a control system to control the system described.
The operation of the system can be summarized as follows:
A NO start PB is used to turn on the conveyor and energize the solenoid.
A NC stop PB is used to turn off the system.
A weight sensor is used to measure the weight on the
conveyor.
If the weight on the conveyor exceeds a preset value of 2000
Kg, the solenoid is deenergized and the pilot light will be on.
When the weight on the conveyor goes below 2000 Kg, the pilot light will return to its normal state and the solenoid is
energized again after 5 seconds.

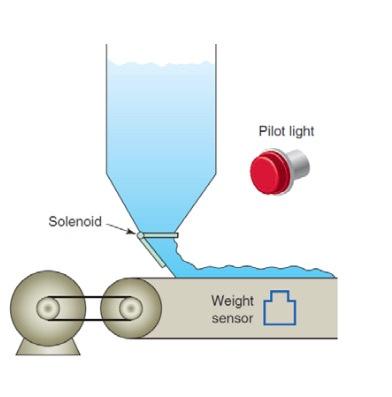

Using a Siemens S300 PLC, design a control system
Polenoid light

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
