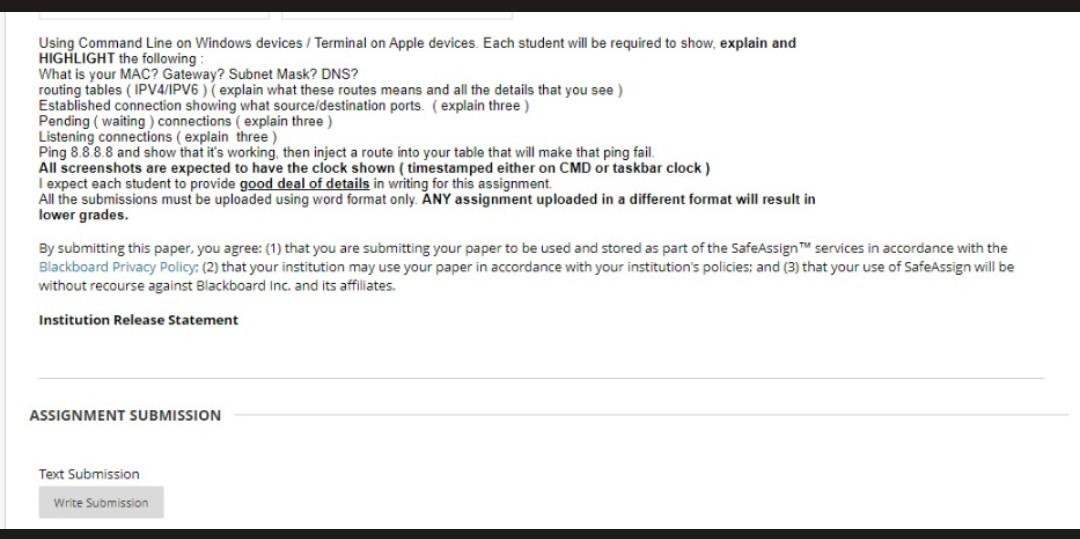

Using Command Line on Windows devices / Terminal on Apple devices. Each student will be required to show, explain and HIGHLIGHT the following : What is your MAC? Gateway? Subnet Mask? DNS? routing tables (IPV4/IPV6) (explain what these routes means and all the details that you see ) Established connection showing what source/destination ports. (explain three ) Pending ( waiting ) connections ( explain three ) Listening connections (explain three) Ping 8.8.8.8 and show that it's working, then inject a route into your table that will make that ping fail. All screenshots are expected to have the clock shown (timestamped either on CMD or taskbar clock) I expect each student to provide good deal of details in writing for this assignment. All the submissions must be uploaded using word format only. ANY assignment uploaded in a different format will result in lower grades. By submitting this paper, you agree: (1) that you are submitting your paper to be used and stored as part of the SafeAssign TM services in accordance with the Blackboard Privacy Policy: (2) that your institution may use your paper in accordance with your institution's policies: and (3) that your use of SafeAssign will be without recourse against Blackboard inc. and its affiliates. For this assignment, you will use your student ID to perform some of the work. typical ID is ( 700ZZYYXX). Each student will be making these in an IPv4 format ZZ.YYXX. for the first three octects. All your work is to be done by hand on a physical paper. You will need to scan that paper and submit it. bring the original papers to class too. WRITE your student number on all the papers you might submit during this assignment. SHOW YOUR WORK IN DETAILS 1 What subnet mask can have the following IPs in it : ZZ.YY=4.XX.0 ZZ.YYY+32.XX+26.0 2 Which subnet mask can have the following IPs in it: ZZ+4.YY+15.XX+5.0ZZ+1.YY+2.XXX.0 3. Which subnet mask can have the following IPs in it: ZZ.YYXXX 19.0 ZZ.YY7.XX+2.0 ZZ.YY+27.XX8.0 4. You are working at a company, you received a request to design a network for a server farm, they want to have enough IPs to support 21312 servers. they need the servers to be divided into 6 different isolated domains. explain how would you perform that task. showing all the work including where will they point to as their gateways. By submitting this paper, you agree: (1) that you are submitting your paper to be used and stored as part of the SafeAssign TM services in accordance with the Blackboard Privacy Policy: (2) that your institution may use your paper in accordance with your institution's policies: and (3) that your use of SafeAssign will be without recourse against Blackboard Inc. and its affiliates. Institution Release Statement
