Question: Using excel solve using bisection and newton-Raphson method The position s of the slider as a function of theta in the crank-slider mechanism shown is

Using excel solve using bisection and newton-Raphson method

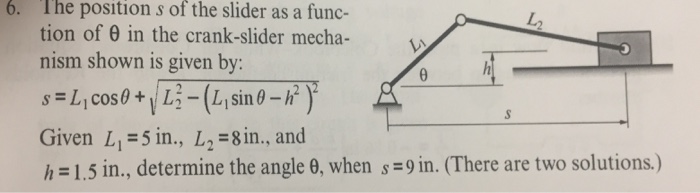

The position s of the slider as a function of theta in the crank-slider mechanism shown is given by: s = L_1 cos theta + Squareroot L^2_2 - (L_1 sin theta - h^2)^2 Given L_1 = 5 in., L_2 = 8in., and h = 1.5 in., determine the angle theta when s = 9 in. (There are two solutions.) The position s of the slider as a function of theta in the crank-slider mechanism shown is given by: s = L_1 cos theta + Squareroot L^2_2 - (L_1 sin theta - h^2)^2 Given L_1 = 5 in., L_2 = 8in., and h = 1.5 in., determine the angle theta when s = 9 in. (There are two solutions.)

Step by Step Solution

There are 3 Steps involved in it
