Question: Using the compatibility equations, please graph the moment diagram ( answer is included ) I just need to see a reference for practice that has

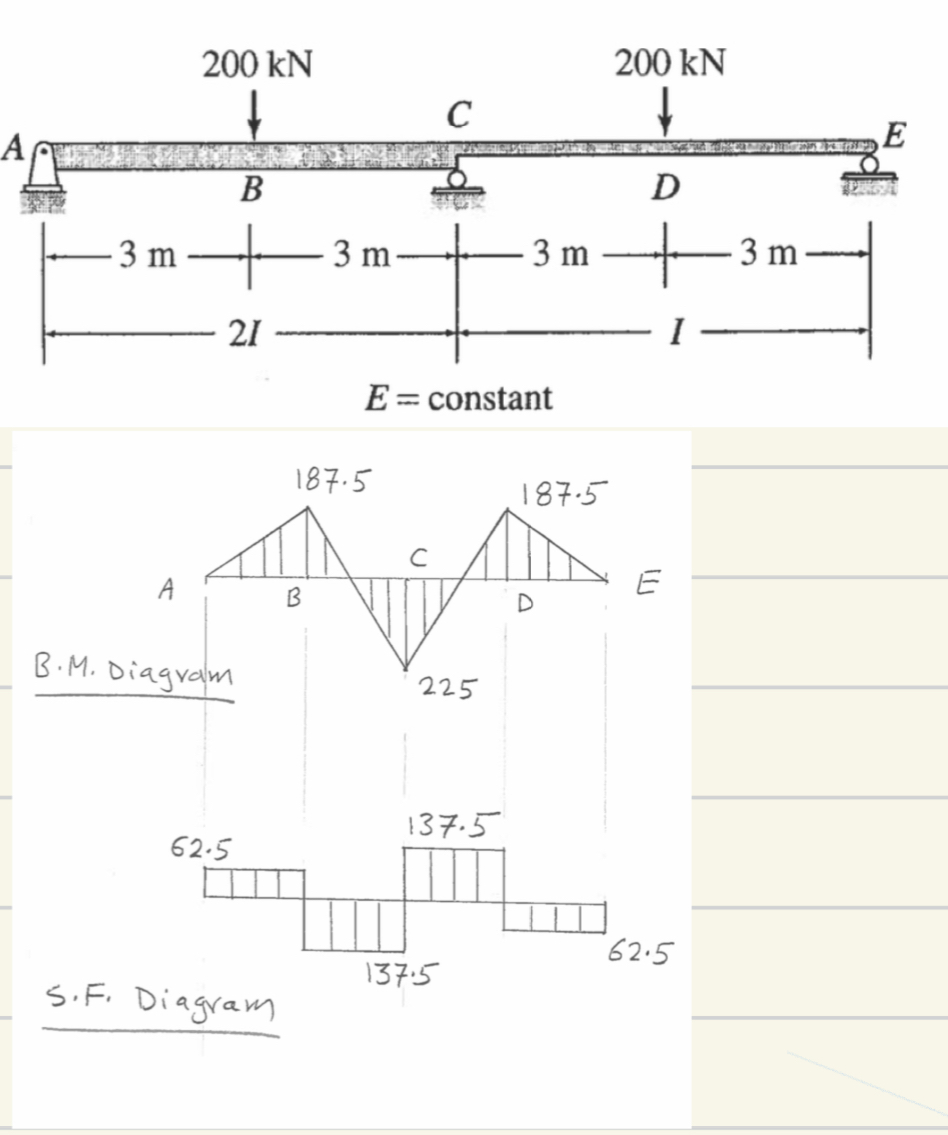

Using the compatibility equations, please graph the moment diagram (answer is included)
I just need to see a reference for practice that has explanations. Thank you!
Using the compatibility equations, please graph

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
