Question: Using the data in the table below, develop the network diagram, calculate the CPM values, complete the table, and mark the critical path. Activity Duration

Using the data in the table below, develop the network diagram, calculate the CPM values, complete the table, and mark the critical path.

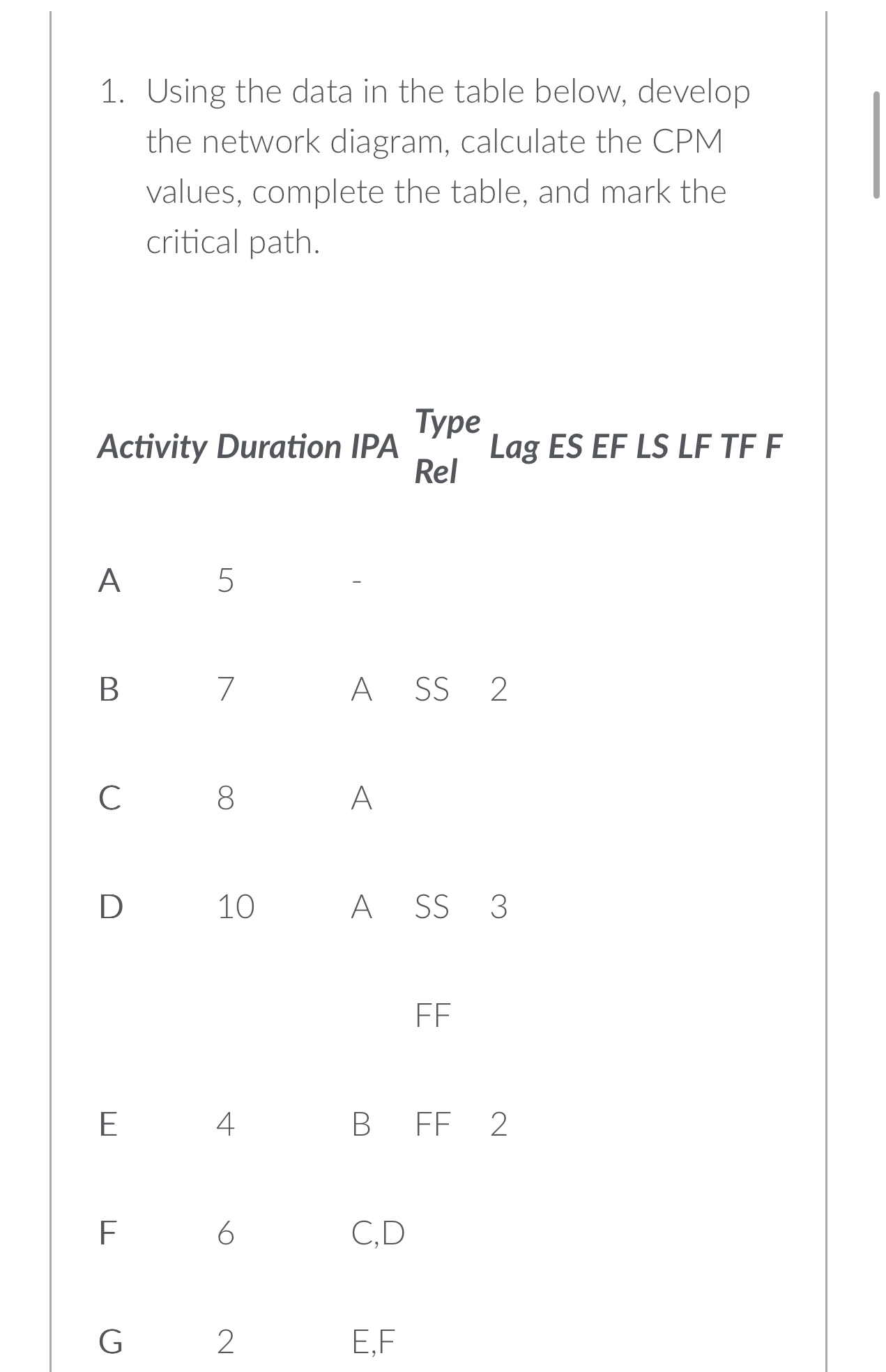

Activity Duration IPA Type
Rel Lag ES EF LS LF TF F
A 5
B7ASS2
C 8 A
D10ASS3
FF
E 4, B , FF 2
F
6
C,D
G
2
E,F
Using the data in the table below, develop the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
