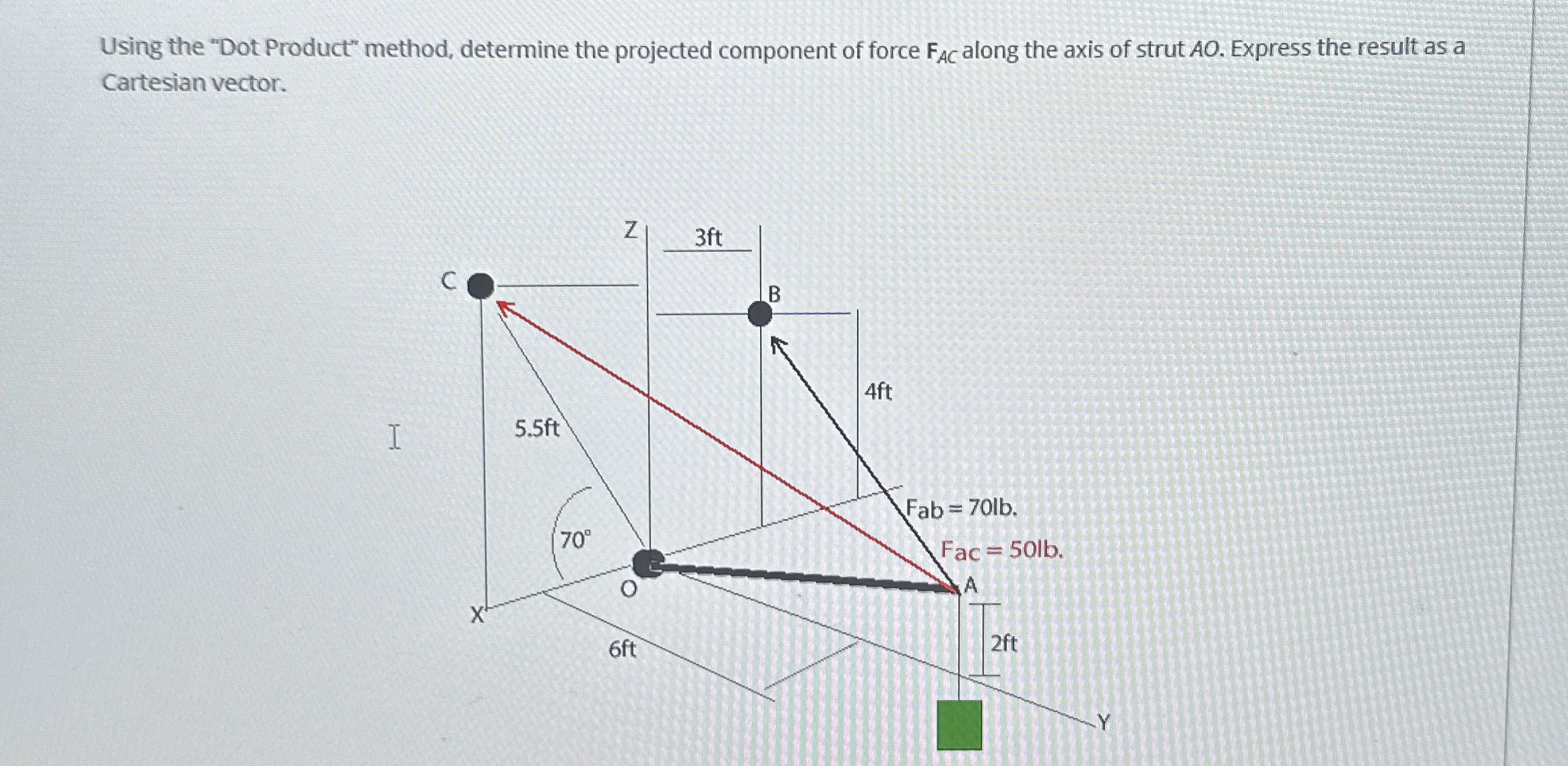

Question: Using the Dot Product method, determine the projected component of force F A C along the axis of strut A O . Express the result

Using the "Dot Product" method, determine the projected component of force FAC along the axis of strut AO. Express the result as a
Cartesian vector.
Using the "Dot Product" method, determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
