Question: Using the force method Determine the reactions at A and C and draw the shear and moment diagrams. A and B are fixed and C

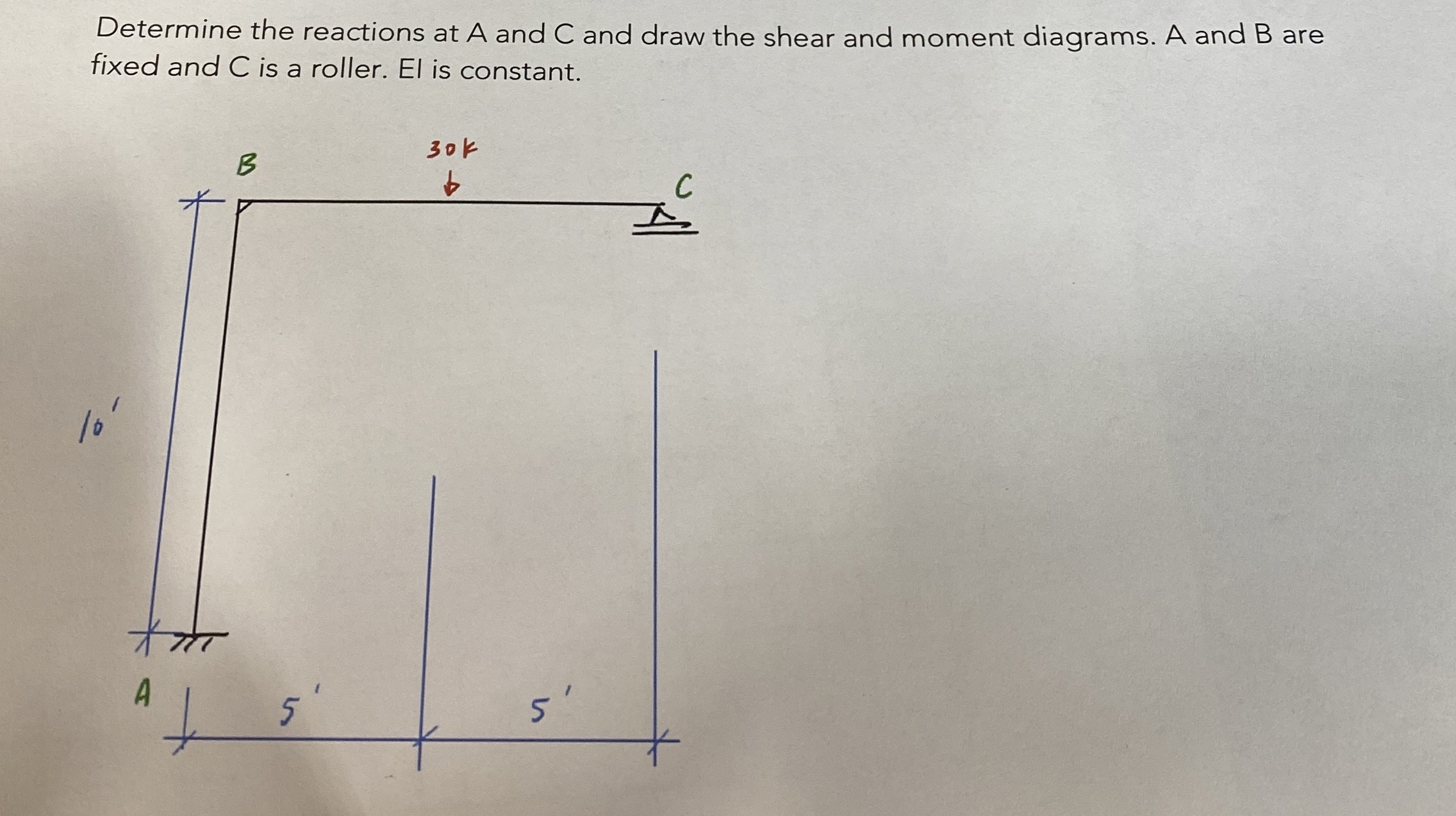

Using the force method Determine the reactions at A and C and draw the shear and moment diagrams. A and B are fixed and C is a roller. El is constant.
The structure is indeterminant to the 1st degree
Using the force method Determine the reactions at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
