Question: Using the Karnaugh map, find the most simplified Boolean Expression of output Z. Show process steps and your work clearly. Question 2 [15 Marks Using

Using the Karnaugh map, find the most simplified Boolean Expression of output Z. Show process steps and your work clearly.

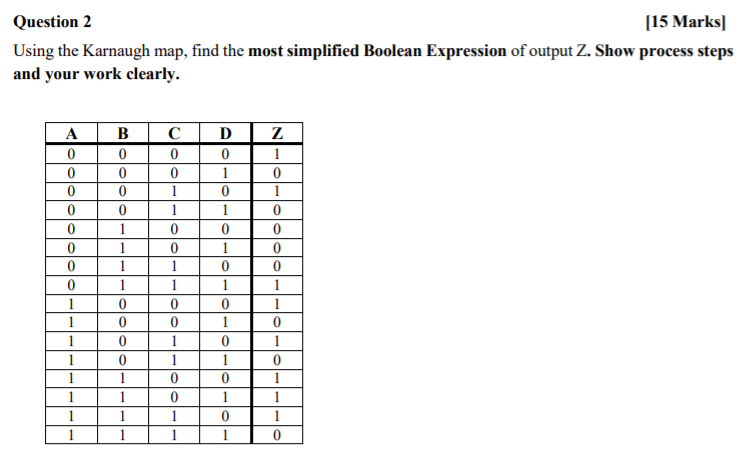

Question 2 [15 Marks Using the Karnaugh map, find the most simplified Boolean Expression of output Z. Show process steps and your work clearly. A 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 B 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 D 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 z 1 0 1 0 0 0 0 1 1 0 1 0 1 1 1 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
