Question: Using the method of Sections determine the force in each member of the truss illustrated in Figure 6 . State whether the members are in

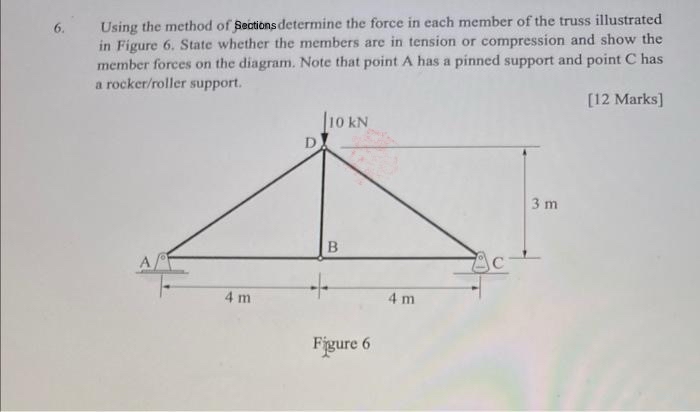

Using the method of Sections determine the force in each member of the truss illustrated in Figure

6 .

State whether the members are in tension or compression and show the member fores on the diagram. Note that point A has a pinned support and point C has a rocker

/

roller support.

Figure

6

Using the method of Sections determine the force

Step by Step Solution

There are 3 Steps involved in it
