Question: Using the method of sections ( or cuts ) and the equations of equilibrium, solve for the internal shear force ( V ) and bending

Using the method of sections

(

or cuts

)

and the equations of equilibrium, solve for the internal shear force

(V)

and bending moment

(M)

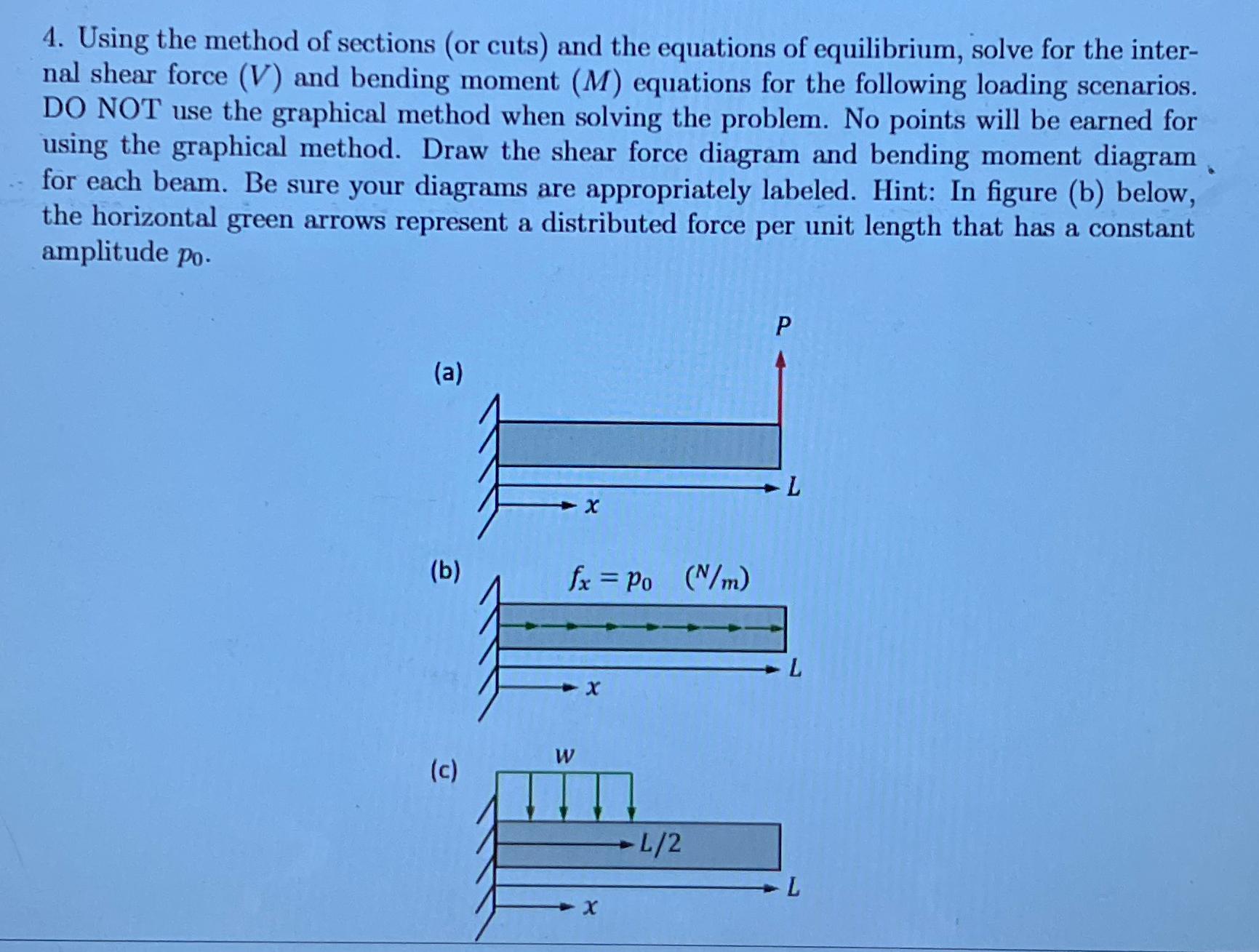

equations for the following loading scenarios. DO NOT use the graphical method when solving the problem. No points will be earned for using the graphical method. Draw the shear force diagram and bending moment diagram for each beam. Be sure your diagrams are appropriately labeled. Hint: In figure

(

)

below, the horizontal green arrows represent a distributed force per unit length that has a constant amplitude

p_{0} .

Using the method of sections (or cuts) and the equations of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

4. Using the method of sections (or cuts) and the equations of equilibrium, solve for the inter- nal shear force (V) and bending moment (M) equations for the following loading scenarios. DO NOT use...

Problem 1 Numerical Problem ( 2 0 points ) : Here is an easy one to start of this H W and give you space to practice the SFD / BMD for a beam with multiple loadings. Let's assume you are a structural...

Numerical Problem ( 2 0 points ) : A gantry crane is an overhead crane that has one or two beams supported by free - standing legs and moves on heels, a track, or rail system carrying a bridge,...

The composite beam ( note the internal hinge ) shown in Figure 1 . 1 is subjected to a distributed load and a point load. a ) Draw all necessary free - body diagrams using the method of sections and...

The composite beam (note the internal hinge) shown in Figure 1.1 is subjected to a distributed load and a point load. a) Draw all necessary free-body diagrams using the method of sections and find...

Problem 2 The cantilever beam shown in Figure 2.1 is subjected to linearly distributed loads. a) Draw all necessary free-body diagrams using the method of sections and find symbolic functions for the...

Problem 1 The composite beam (note the internal hinge) shown in Figure 1.1 is subjected to a distributed load and a point load. a) Draw all necessary free-body diagrams using the method of sections...

Problem 1 The composite beam ( note the internal hinge ) shown in Figure 1 . 1 is subjected to a distributed load and a point load. a ) Draw all necessary free - body diagrams using the method of...

The composite beam (note the internal hinge) shown in Figure 1.1 is subjected to a distributed load and a point load. a) Draw all necessary free-body diagrams using the method of sections and find...
