Question: Using the project information below, draw the AON diagram and complete forward and backward pass. Calculate the slack and identify the critical path. ( 5

Using the project information below, draw the AON diagram and complete forward and backward pass. Calculate the slack and identify the critical path. (5 points)
\table[[Activity,Duration],[A,5],[B,3],[C,8],[D,7],[E,4],[F,6],[G,2]]
\table[[Network relationships],[A - D Finish to Start],[A - C Finish to Start],[A - B Start to Start - Lag 1 time units],[D - E Start to Start - Lag 3 time units],[D - E Finish to Finish - Lag 4 time units],[B - E Finish to Start],[C - F Finish to Start - Lag 2 time units],[E - F Finish to Start],[F - G Finish to Start]]

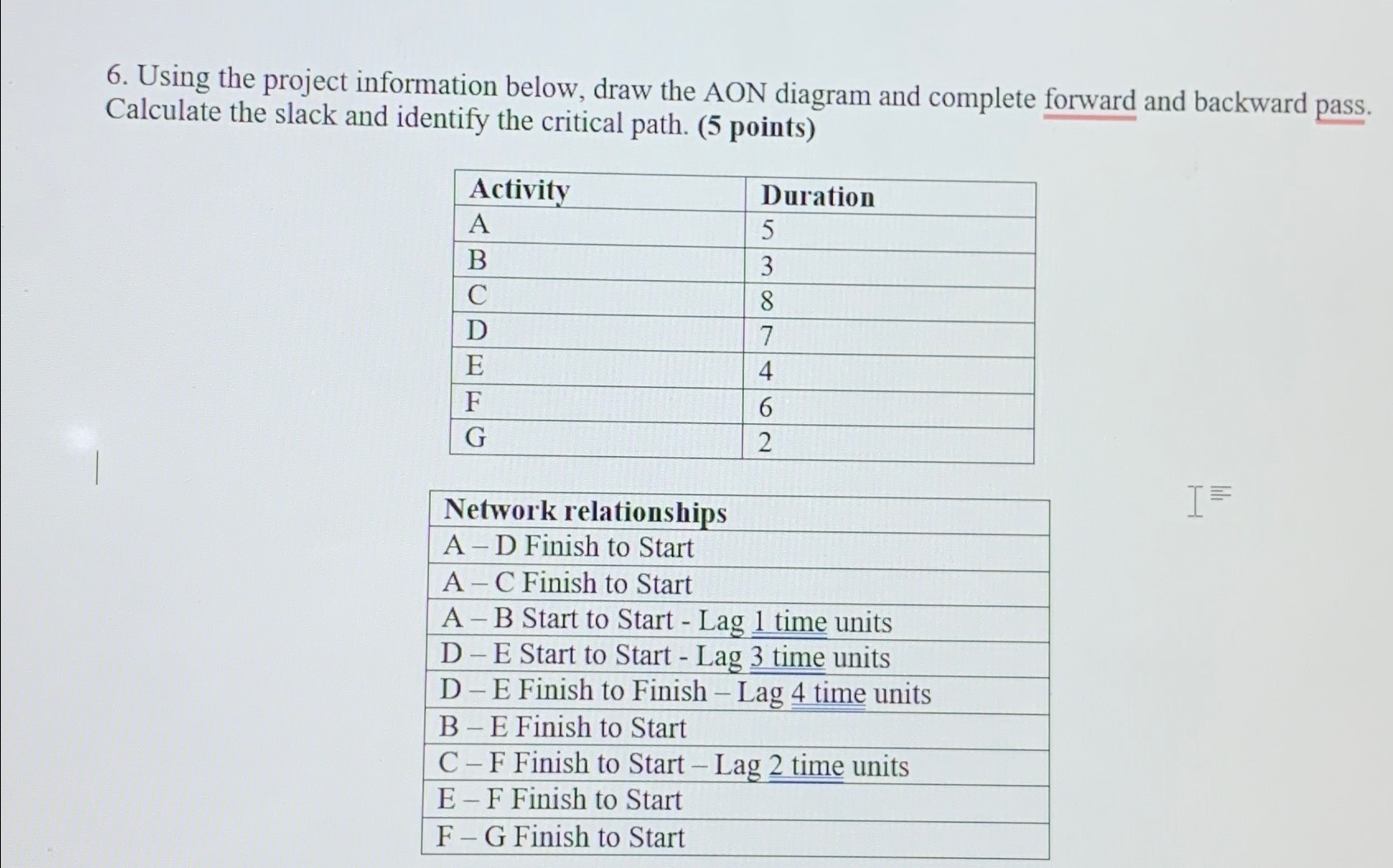

Using the project information below, draw the AON diagram and complete

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
