Question: Using the pump curves below estimate the maximum flow ( in gpm ) , impeller size and horsepower if the total dynamic head is 7

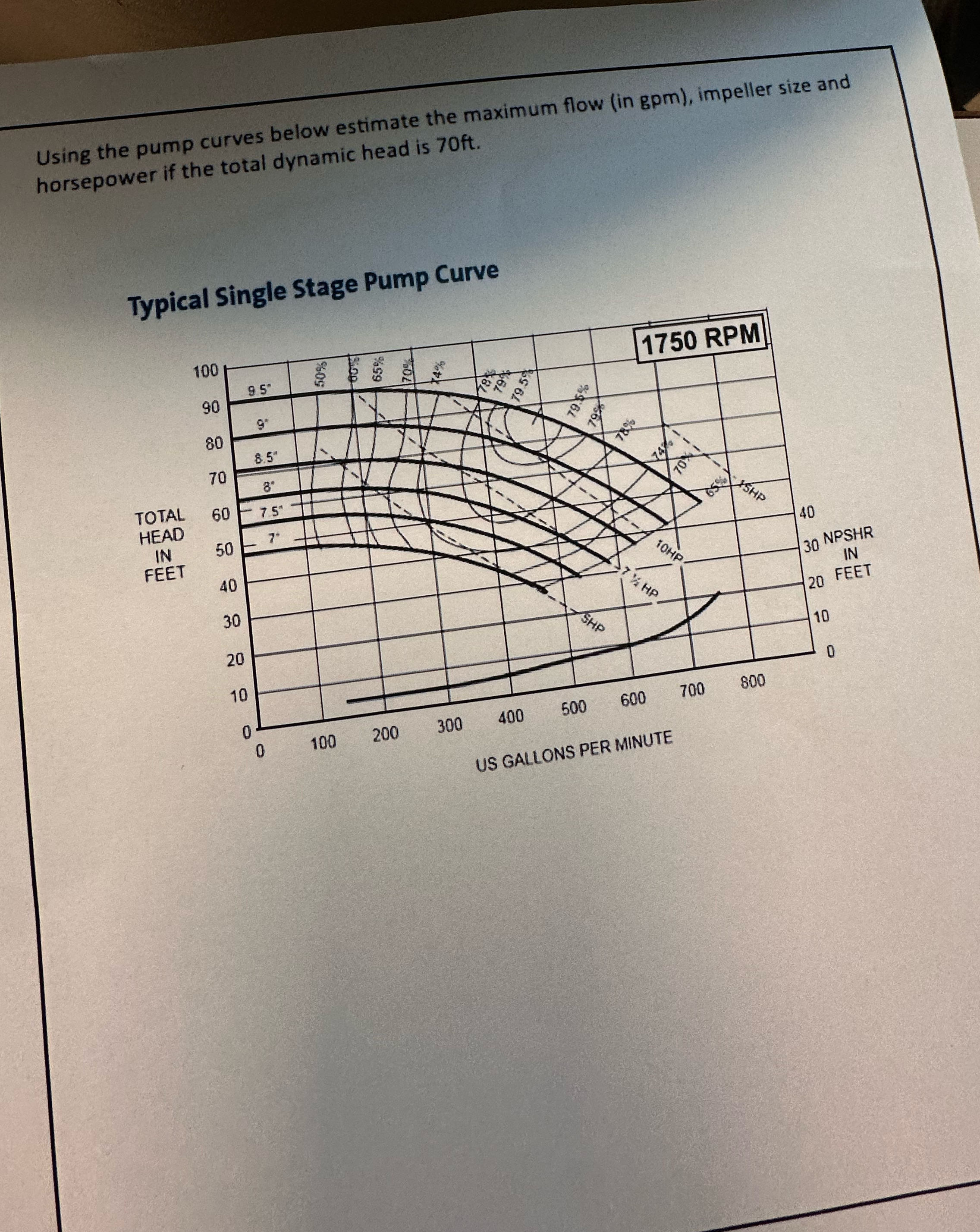

Using the pump curves below estimate the maximum flow (in gpm), impeller size and horsepower if the total dynamic head is 70ft.
Dmo Curve
Using the pump curves below estimate the maximum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
