Question: Using the switch number (A-1, A-2 , , C-4) in a Banyan switch (see picture below), write the flow of data sent from input 4

Using the switch number (A-1, A-2 , , C-4) in a

Using the switch number (A-1, A-2 , , C-4) in a Banyan switch (see picture below), write the flow of data sent from input 4 to output 6. E.g. A-4, B-4, C-4 if the data sent from input 7 to output 7

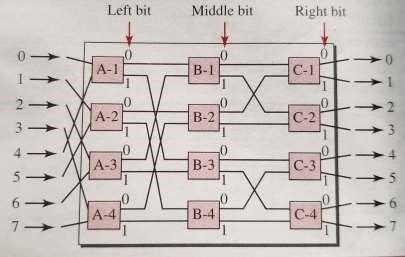

Left bit Middle bit Right bit A-1 B-1 C-1 1 1 2 | A-2 B-2 0 C-2 |A-31 B-3 1C-3 X [A4 B-4 C-4 7 - Left bit Middle bit Right bit A-1 B-1 C-1 1 1 2 | A-2 B-2 0 C-2 |A-31 B-3 1C-3 X [A4 B-4 C-4 7

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
