Question: Using the truss below, the Method of Sections and the given reactions at the supports, match the best answer ( Member Forces ) with the

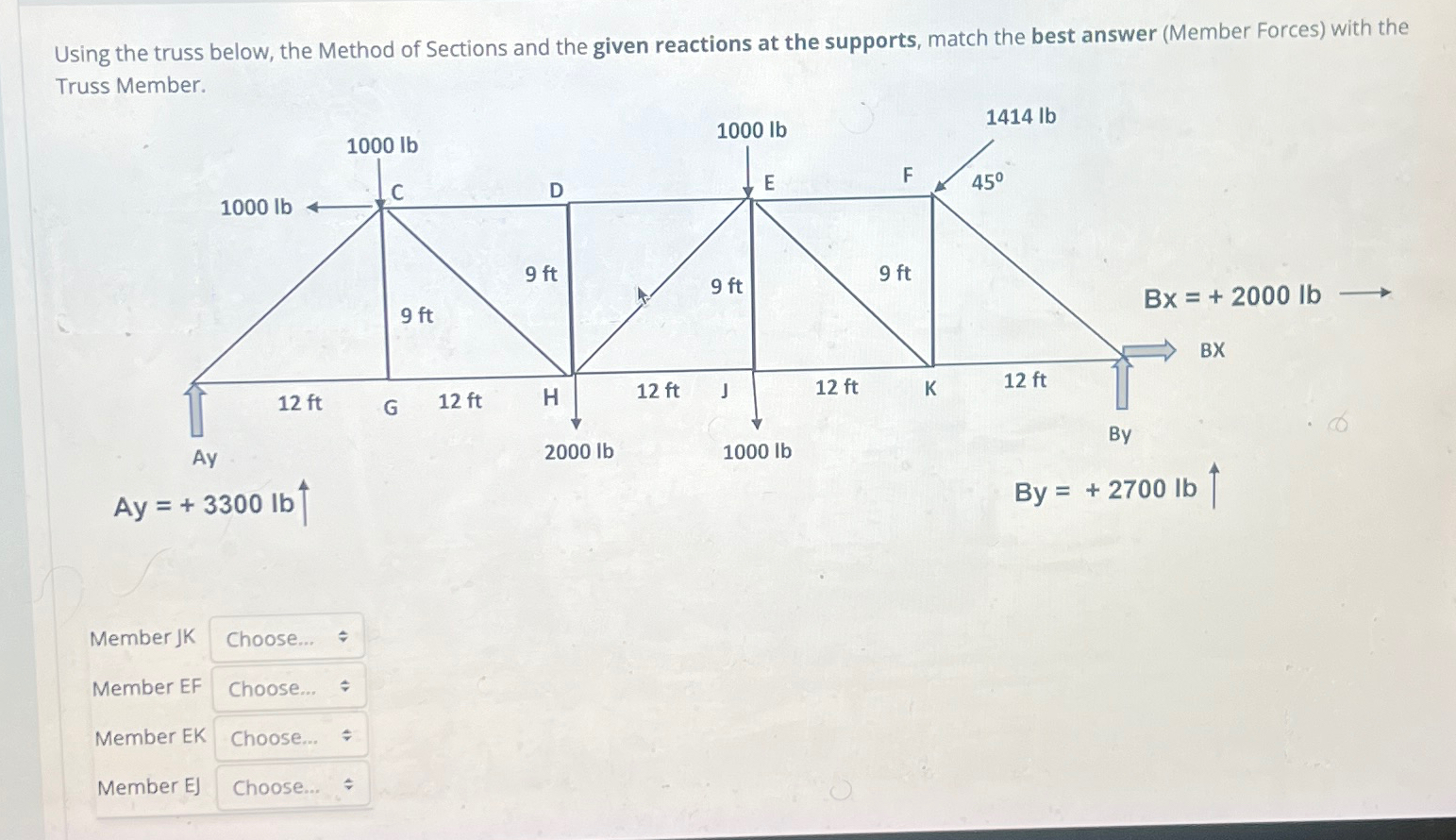

Using the truss below, the Method of Sections and the given reactions at the supports, match the best answer (Member Forces) with the Truss Member.
Member JK
Member EF
Member EK
Member EJ
Using the truss below, the Method of Sections and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
