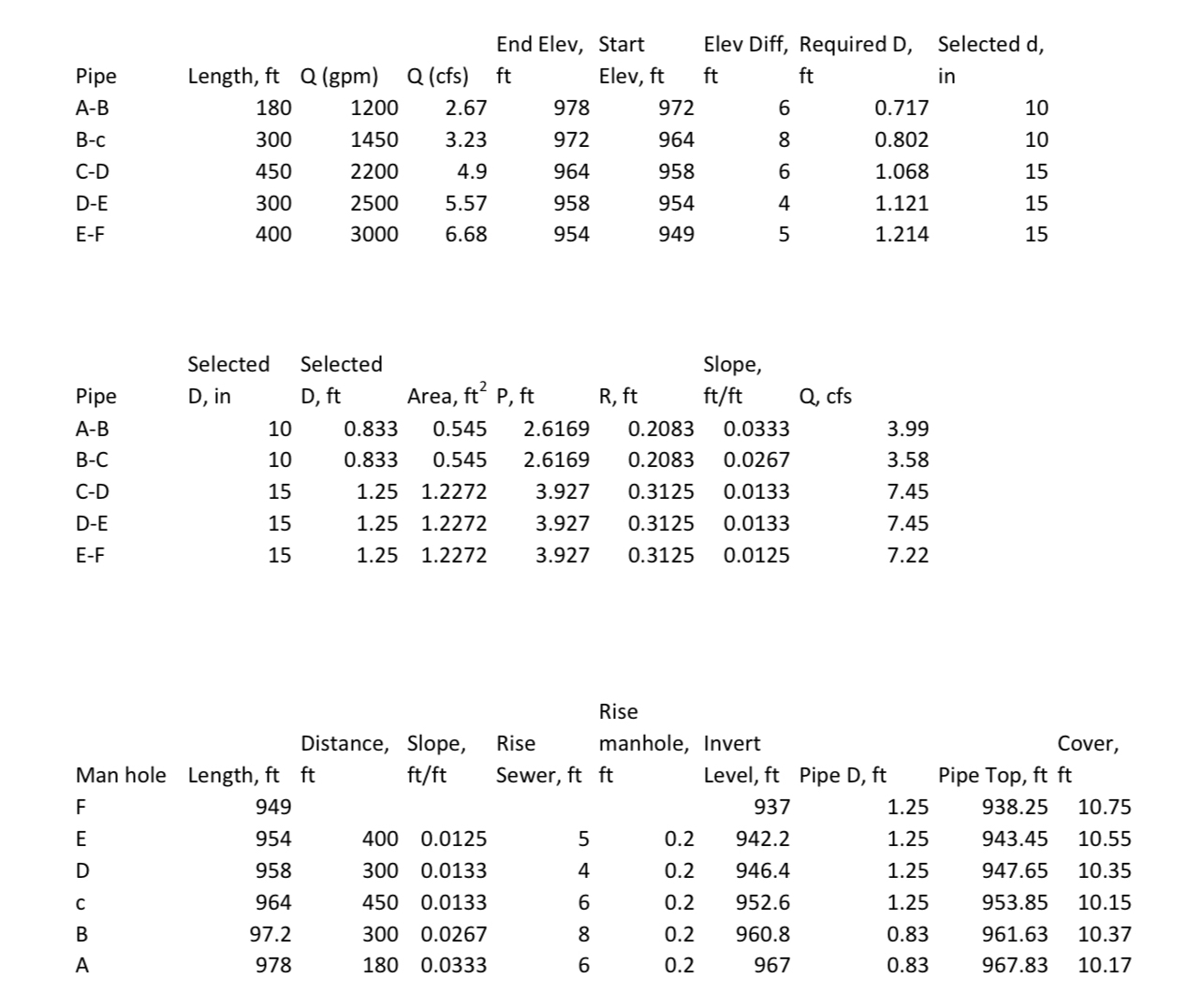

Question: Using these results. Hand - draw the plan and profile. Please use a straight edge to produce neat work.The plan and profile must include the

Using these results. Hand

-

draw the plan and profile. Please use a straight edge to produce neat work.The plan and profile must include the following: Manhole labels, Pipe size, Pipe length, Invert elevations, Hydraulic grade line from each upstream to downstream manhole

Using these results. Hand - draw the plan and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!
