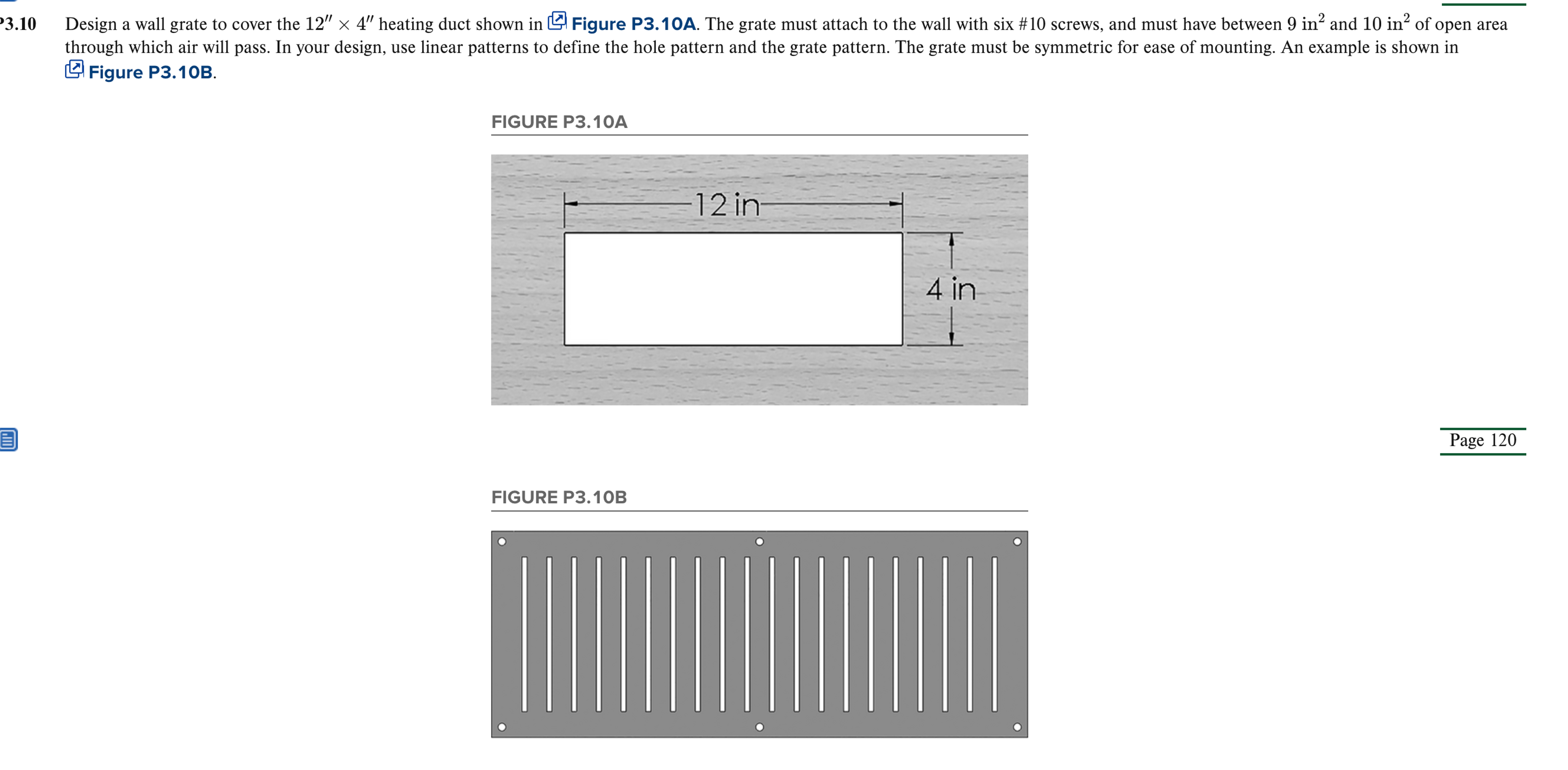

Using your A$-$landscape template. o Create detailed & toleranced drawing of vent cover. $$ Apply use of decimal place tolerancing. $($references tolerance block in title block$)$ Show that you know how to apply plus$/$minus and limit tolerances for tighter toleranced items. $$ Refer to next slide for the guidance. o Make sure to have a good title block with items filled from properties.

Add tolerances as follows: $$ The outside dimensions of the rectangle can be $+/-1/16$ Tolerance the hole locations to $+/-\mathrm{.}005$ Limit tolerance the length of your slots: $+\mathrm{.}010$ and $-\mathrm{.}005$ Use a bilateral tolerance for the width of your slots: $+\mathrm{.}007$ and $-\mathrm{.}002.$ Tolerance the outside dimensions of the part $+/-\mathrm{.}010$
