Question: For the beam and loading shown, a distributed load is P = 8 6 l b f t . Draw the shear and bending -

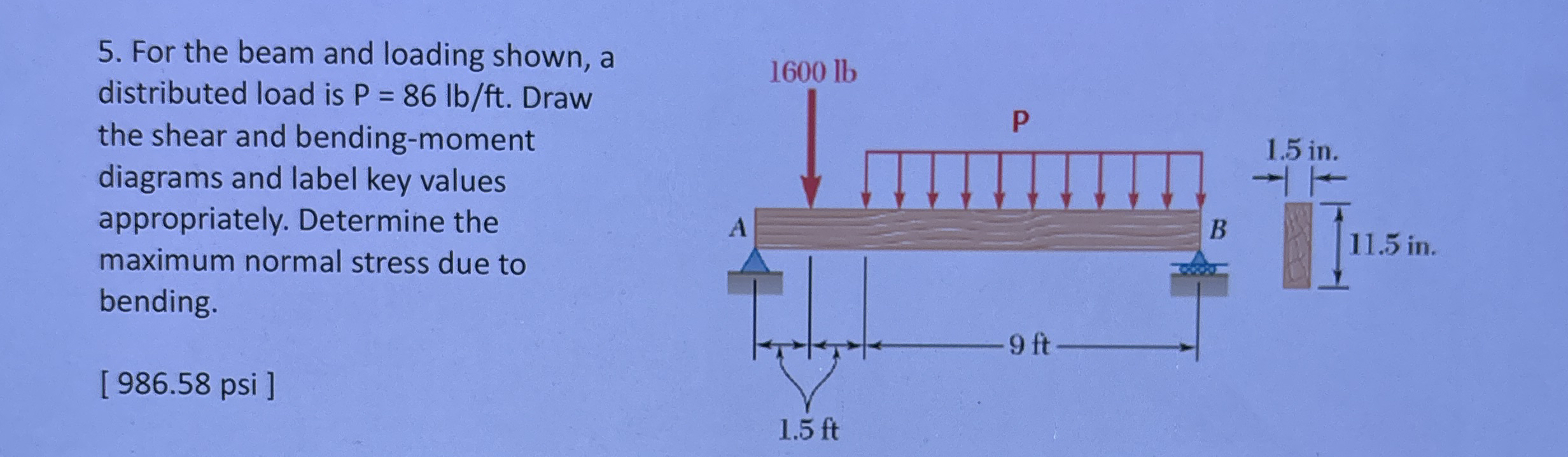

For the beam and loading shown, a distributed load is P=86lbft. Draw the shear and bending-moment diagrams and label key values appropriately. Determine the maximum normal stress due to bending.
[986.58 psi ]
For the beam and loading shown, a distributed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the beam and loading shown, a distributed load is P = 8 6 lb / / ft . Draw the shear and bending - moment diagrams and label key values appropriately. Determine the maximum normal stress due to...
