Question: Using your image of the voltage in the loop draw a clear and consistent vector diagram that shows, why the voltage measured, is positive or

Using your image of the voltage in the loop draw a clear and consistent vector diagram that shows, why the voltage measured, is $positive or negative. Note that you should have 8 diagrams \fMotion .$

Using your image of the voltage in the loop draw a clear and consistent vector diagram that shows, why the voltage measured, is positive or negative. Note that you should have 8 diagrams

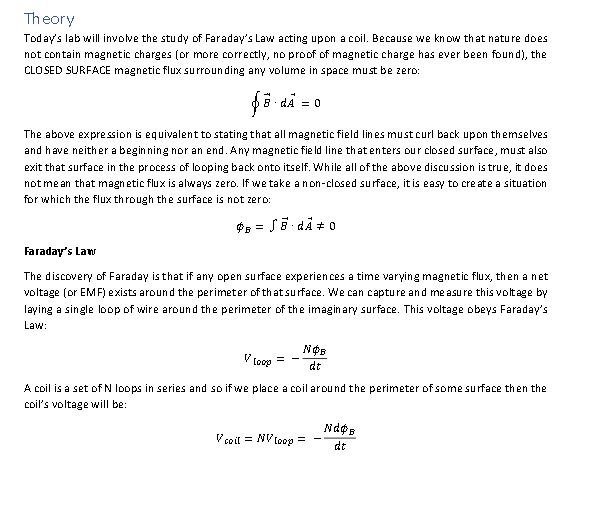

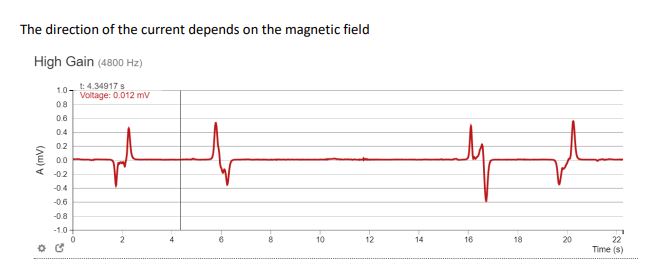

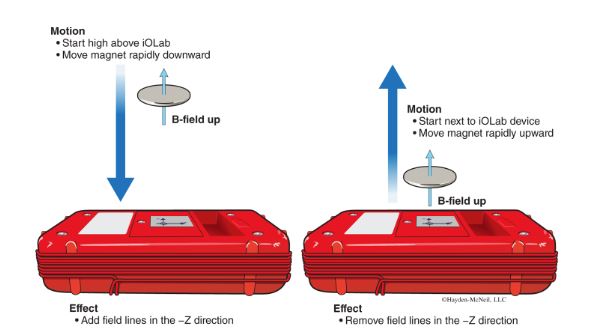

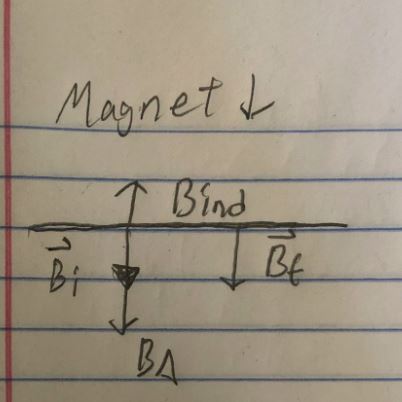

\fMotion . Start high above iOLab . Move magnet rapidly downward Motion B-field up . Start next to iOLab device . Move magnet rapidly upward B-field up Effect Effect . Add field lines in the -Z direction Remove field lines in the -Z direction

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
