Question: VConsider the cross - section with dimensions as provided below, and complete the following. Use a = 4 ' ' , b = 0 .

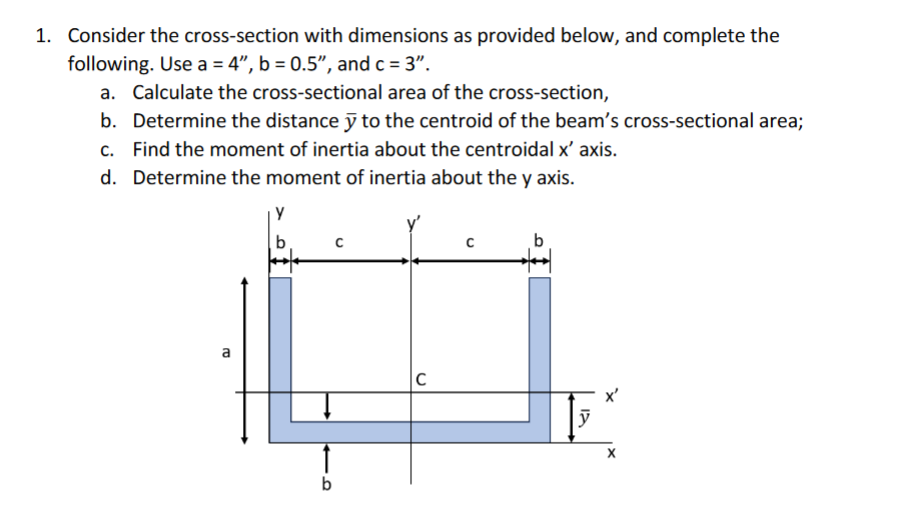

VConsider the cross-section with dimensions as provided below, and complete the
following. Use a=4'',b=0.5'', and c=3''.
a. Calculate the cross-sectional area of the cross-section,
b. Determine the distance ?bar(y) to the centroid of the beam's cross-sectional area;
c. Find the moment of inertia about the centroidal x' axis.
d. Determine the moment of inertia about the y axis.
VConsider the cross - section with dimensions as
