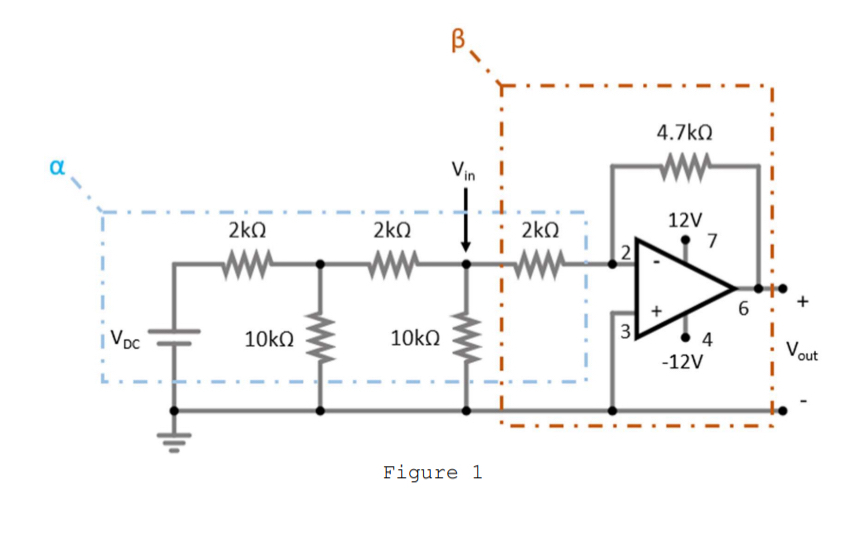

VOLTAGE$-$CONTROLLED VOLTAGE SOURCE $($VCVS$)-$ The circuit of Figure $1$ consists of two stages, which are highlighted by the dashed boxes. The first stage is a resistor network that effectively applies a gain, $,$ to $V_{DC}$ and produces the voltage $V_{in}.$ The second stage is a VCVS that applies a gain, $,$ to $V_{in}$ to produce the voltage $V_{\text{o}\text{u}\text{t}}.$ Use your knowledge of circuit analysis and op$-$amps to calculate theoretical values for these two gains. For more accurate results, measure the actual values of resistors using the multimeter and use these in the calculations.Figure $1$
