Question: w AutoSave off Assignment . Saved to this PC Search (Alt+Q) Mark Abdelmessih MA X File Home Insert Draw Design Layout References Mailings Review View

 w AutoSave off Assignment . Saved to this PC Search (Alt+Q)Mark Abdelmessih MA X File Home Insert Draw Design Layout References Mailings

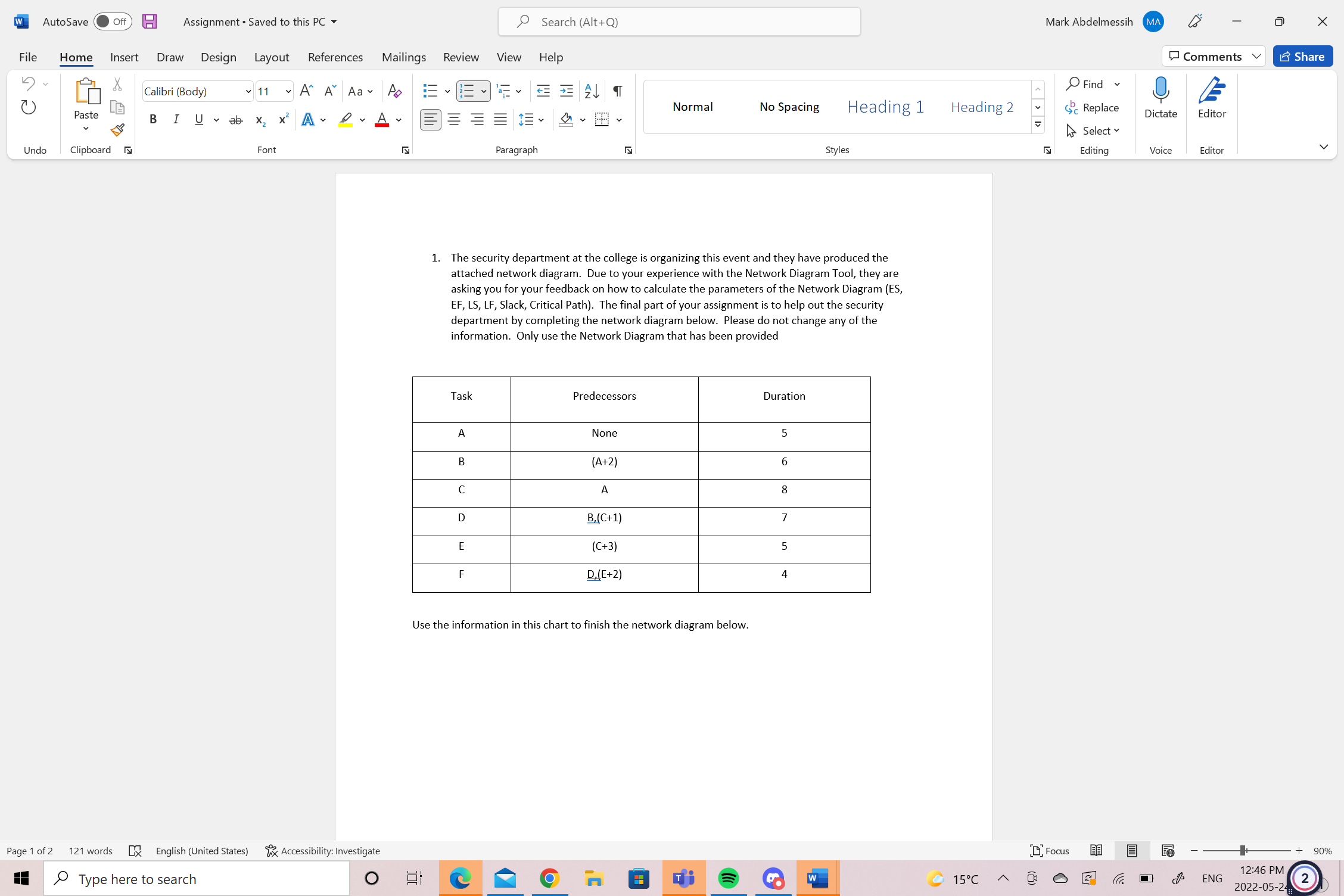

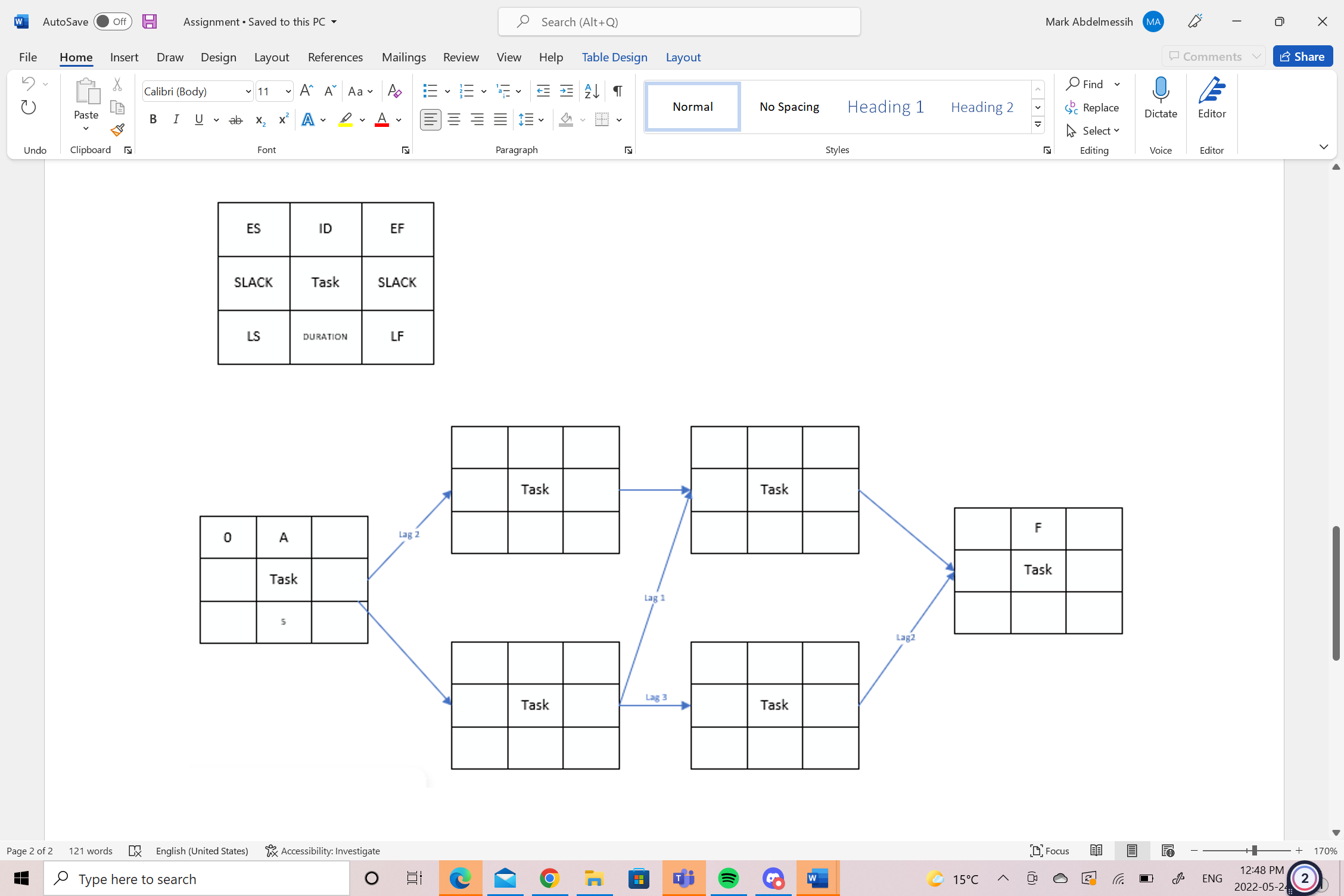

w AutoSave off Assignment . Saved to this PC Search (Alt+Q) Mark Abdelmessih MA X File Home Insert Draw Design Layout References Mailings Review View Help Comments V Share Calibri (Body) 11 ~ A A Aa Ap Find No Spacing Paste Normal Heading 1 Heading 2 Gc Replace BI U~ ab X2 X A LA Dictate Editor Select Undo Clipboard Font Paragraph Styles Editing Voice Editor 1. The security department at the college is organizing this event and they have produced the attached network diagram. Due to your experience with the Network Diagram Tool, they are asking you for your feedback on how to calculate the parameters of the Network Diagram (ES, EF, LS, LF, Slack, Critical Path). The final part of your assignment is to help out the security department by completing the network diagram below. Please do not change any of the information. Only use the Network Diagram that has been provided Task Predecessors Duration A None 5 B (A+2) 6 C A 8 D B,(C+1) 7 E C+3) 5 D,(E+2) 4 Use the information in this chart to finish the network diagram below. Page 1 of 2 121 words X English (United States) Ex Accessibility: Investigate Focus 90% Type here to search O ORO W 15C D O E GO 7 ENG 12:46 PM 2022-05-24 2W AutoSave off Assignment . Saved to this PC Search (Alt+Q) Mark Abdelmessih MA X File Home Insert Draw Design Layout References Mailings Review View Help Table Design Layout Comments Share Calibri (Body) 11 ~ A A Aa Ap Find Paste Normal No Spacing BI U~ ab X2 x A LA Heading 1 Heading 2 Gc Replace Dictate Editor Select Undo Clipboard Font Paragraph Styles Editing Voice Editor ES ID EF SLACK Task SLACK LS DURATION LF Task Task F 0 A Lag 2 Task Task Lag 1 Lag2 Task Lag 3 Task Page 2 of 2 121 words DX English (United States) x Accessibility: Investigate Focus 170% Type here to search O W 15C D O B GO 7 ENG 12:48 PM 2022-05-24 2

Step by Step Solution

There are 3 Steps involved in it
