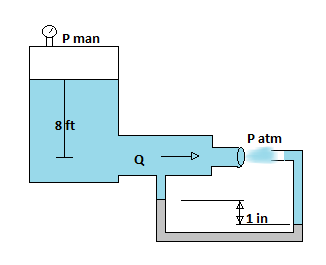

Water flows from a large container at steady state through a 1-ft-diameter pipe and out of the system through a 3-in-diameter reduction. The free jet that comes out of the pipe, with the same diameter as the reduction, collides with a Pitot tube where mercury is present. Calculate:

a) The pressure differential indicated by the manometer with Mercury.

b) The flow of water leaving the system.

c) The pressure indicated by the Bourdon manometer placed at the top of the tank.

Pman 8 ft Patm Q +1 in
