Question: Water flows through a horizontal plastic pipe with a diameter of 0 . 4 m at a velocity of 1 5 c m s .

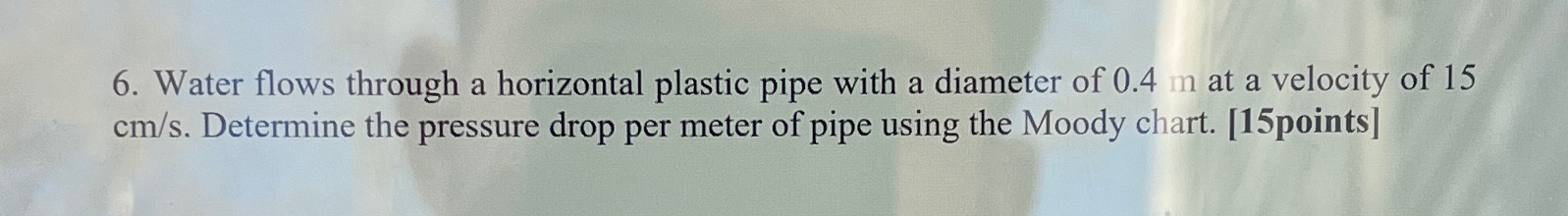

Water flows through a horizontal plastic pipe with a diameter of 0.4m at a velocity of 15cms. Determine the pressure drop per meter of pipe using the Moody chart. [15points]
