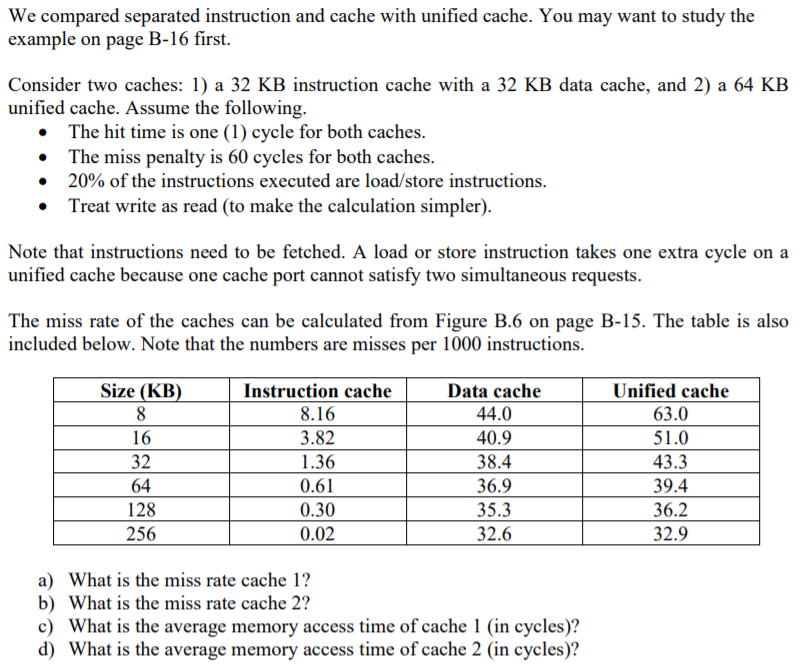

We compared separated instruction and cache with unified cache. You may want to study the example on page B-16 first. Consider two caches: 1) a 32 KB instruction cache with a 32 KB data cache, and 2) a 64 KB unified cache. Assume the following The hit time is one (1) cycle for both caches. The miss penalty is 60 cycles for both caches 20% of the instructions executed are load/store instructions Treat write as read (to make the calculation simpler) . . Note that instructions need to be fetched. A load or store instruction takes one extra cycle on a unified cache because one cache port cannot satisfy two simultaneous requests. The miss rate of the caches can be calculated from Figure B.6 on page B-15. The table is also included below. Note that the numbers are misses per 1000 instructions. Size (KB) 32 64 128 256 Instruction cache 8.16 3.82 1.36 0.61 0.30 0.02 Data cache 44.0 40.9 38.4 36.9 35.3 32.6 Unified cache 63.0 51.0 43.3 39.4 36.2 32.9 a) What is the miss rate cache 1? b) What is the miss rate cache 2? c) What is the average memory access time of cache 1 (in cycles)? d) What is the average memory access time of cache 2 (in cycles)? We compared separated instruction and cache with unified cache. You may want to study the example on page B-16 first. Consider two caches: 1) a 32 KB instruction cache with a 32 KB data cache, and 2) a 64 KB unified cache. Assume the following The hit time is one (1) cycle for both caches. The miss penalty is 60 cycles for both caches 20% of the instructions executed are load/store instructions Treat write as read (to make the calculation simpler) . . Note that instructions need to be fetched. A load or store instruction takes one extra cycle on a unified cache because one cache port cannot satisfy two simultaneous requests. The miss rate of the caches can be calculated from Figure B.6 on page B-15. The table is also included below. Note that the numbers are misses per 1000 instructions. Size (KB) 32 64 128 256 Instruction cache 8.16 3.82 1.36 0.61 0.30 0.02 Data cache 44.0 40.9 38.4 36.9 35.3 32.6 Unified cache 63.0 51.0 43.3 39.4 36.2 32.9 a) What is the miss rate cache 1? b) What is the miss rate cache 2? c) What is the average memory access time of cache 1 (in cycles)? d) What is the average memory access time of cache 2 (in cycles)
