Question: We have a hook that is lifting a large weight. The force applied tothe hook s F = 7 0 0 0 lbf . The

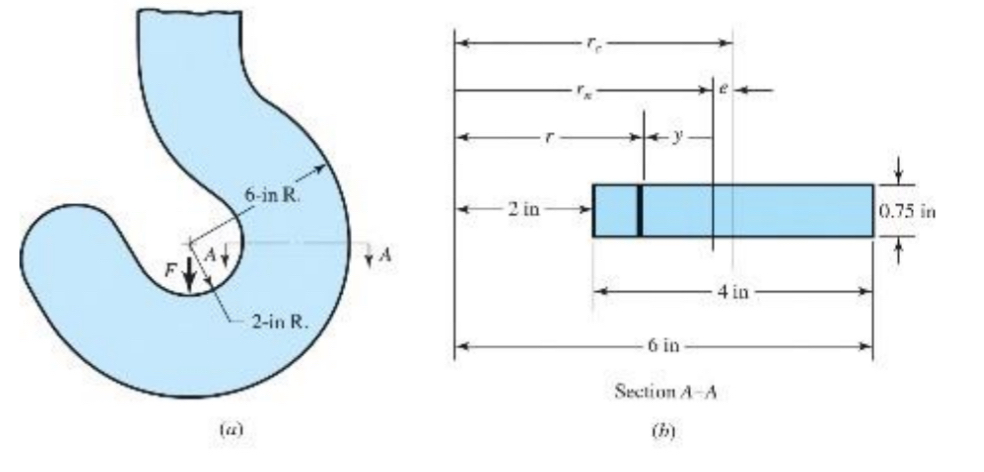

We have a hook that is lifting a large weight. The force applied tothe hook s F =7000lbf. The crosssection is rectangular, with b =1 inand h =4 in.
A. Find the neutral axis of the curved beam
B. Find the total stress (bending+axial stress) on the inner and outer surfaces of the curved beam(a)
(b)
We have a hook that is lifting a large weight.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
