Question: We want to use a ROM memory to implement a digital circuit that receives two 2-bit numbers X and Y (X:X1X0-YsyYo) and detects whether X

We want to use a ROM memory to implement a digital

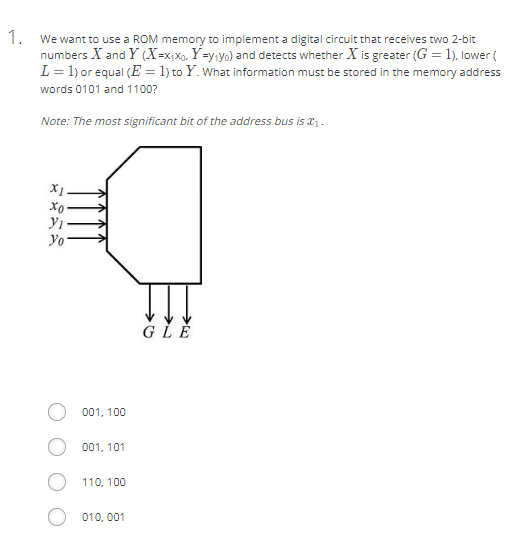

We want to use a ROM memory to implement a digital circuit that receives two 2-bit numbers X and Y (X:X1X0-YsyYo) and detects whether X is greater (G = 1), lower ( L = 1) or equal (E = 1) to Y. what information must be stored in the memory address words 0101 and 1100? Note: The most significant bit of the address bus is T1 yI Yo GL E 001, 100 001, 101 1 10, 100 010, 001

Step by Step Solution

There are 3 Steps involved in it
