Question: What microoperation is executed when the 1 6 - bit control word 0 1 0 1 1 0 1 0 1 1 1 1 1

What microoperation is executed when the 16-bit control word 0101101011111001 is applied to the datapath given in problem 9 of the workshop problems.

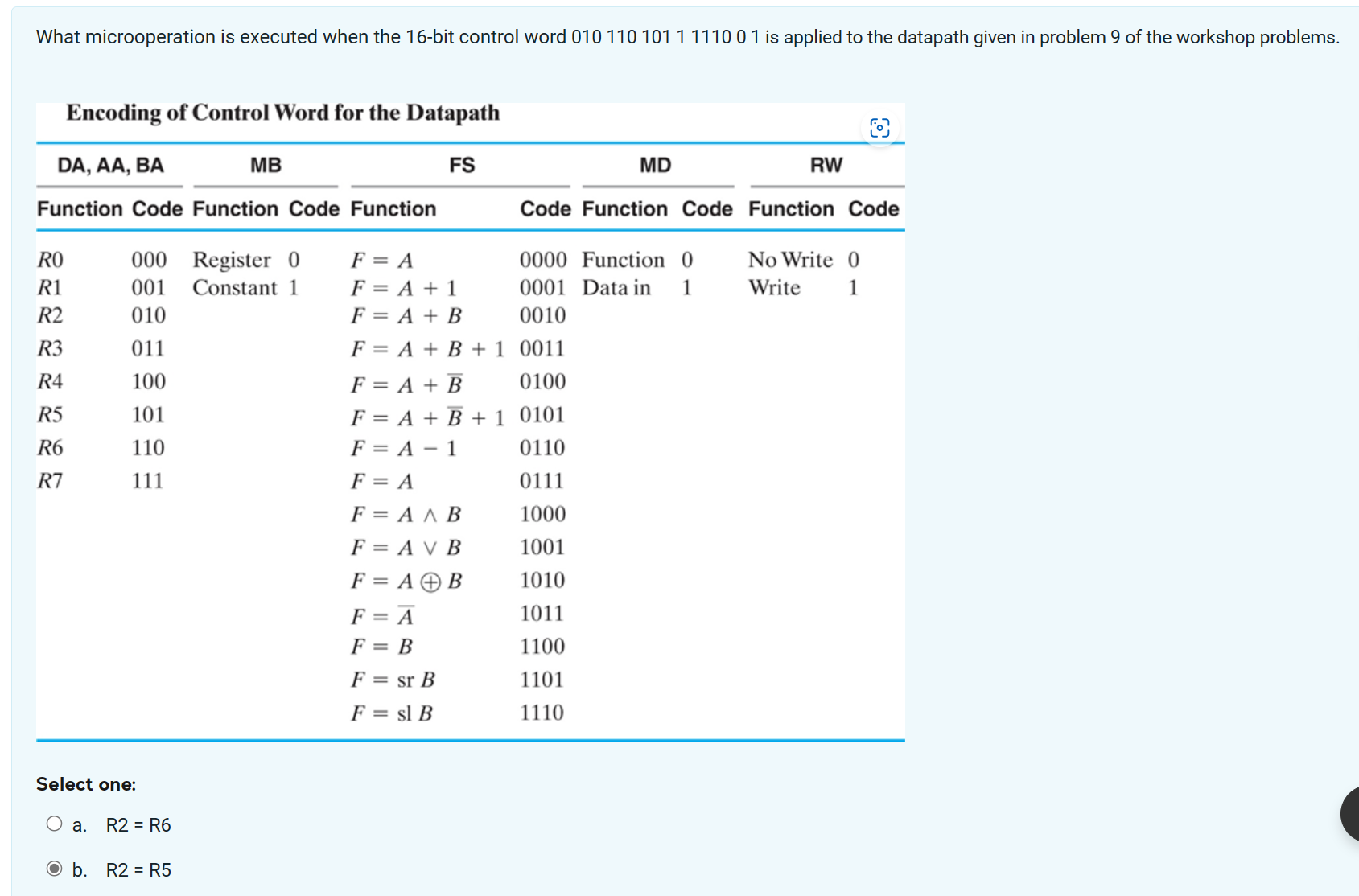

Encoding of Control Word for the Datapath
Select one:
a.R2=R6
b.R2=R5
What microoperation is executed when the 1 6 -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
