When attempting this tutorial I recommend that you should draw the structure and bending moment diagrams on graph paper. Either sketch the deflected shape using a pencil or $($better$)$ draw the deflected shape using French curves.

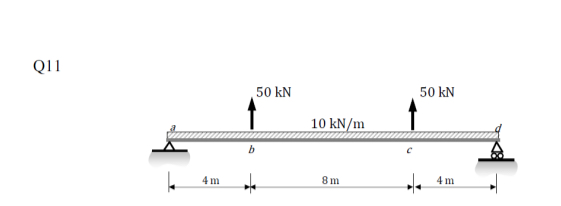

For each structure shown below:

$($i$)$ Calculate the reactions.

$($ii$)$ Draw the shear force and bending moment diagrams. If applicable, draw the axial force diagram.

$($iii$)$ Sketch the deflected shape.Q$11$
