Question: Which of following boolean expressions correctly represents the boolean function given in the table? (xy'z + x'yz' + x'yz' + x'y'z + x'y'z)' xy'z +

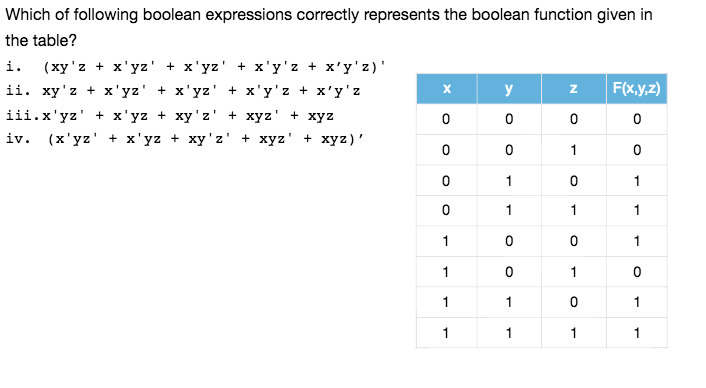

Which of following boolean expressions correctly represents the boolean function given

Which of following boolean expressions correctly represents the boolean function given in the table? (xy'z + x'yz' + x'yz' + x'y'z + x'y'z)' xy'z + x'yz' + x'yz' + x'y'z + x'y'z x'yz

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
