Question: Which statement is true about the register file which has the design shown below? The clock signal is an input to all the decoders The

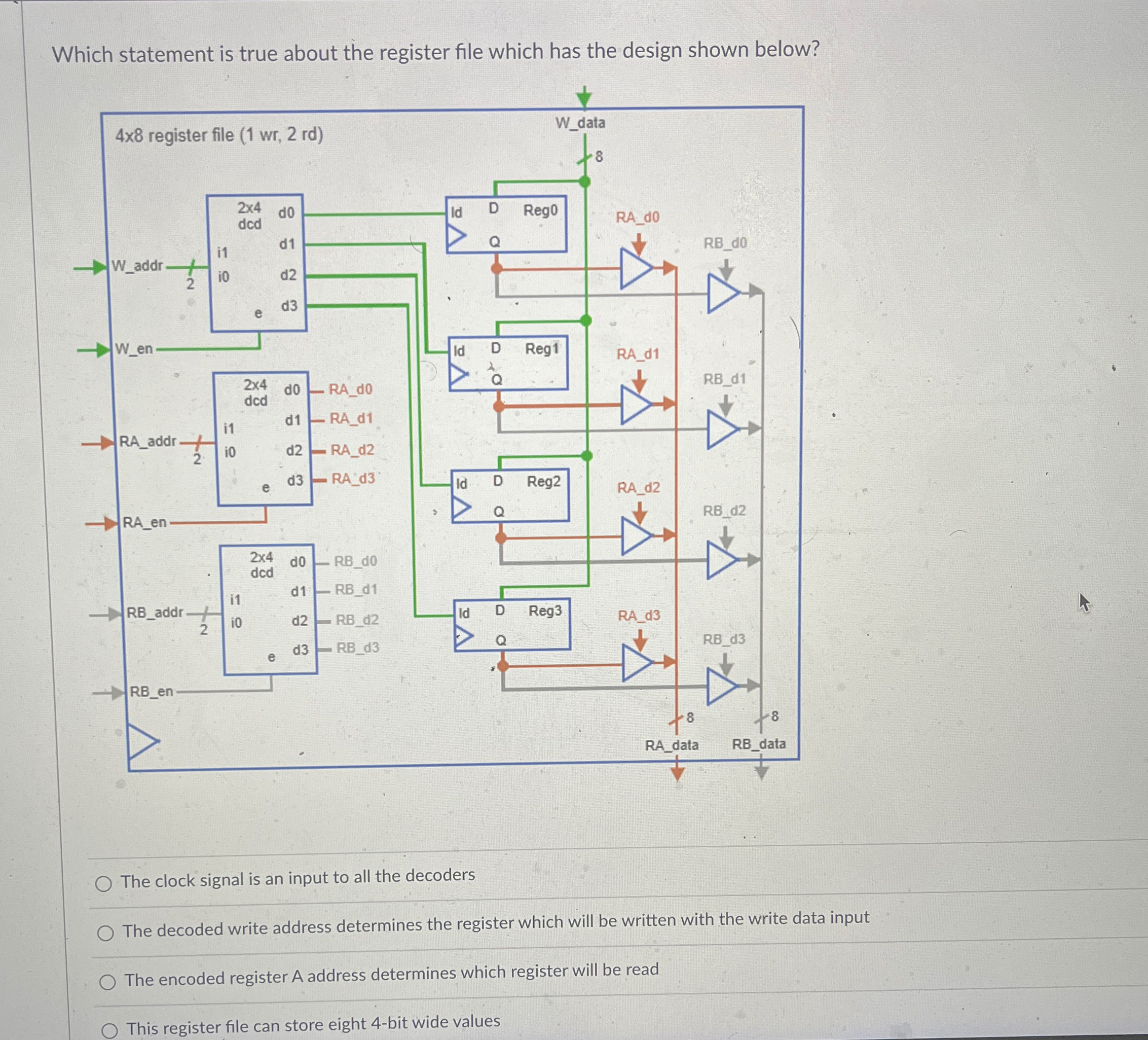

Which statement is true about the register file which has the design shown below?
The clock signal is an input to all the decoders
The decoded write address determines the register which will be written with the write data input
The encoded register A address determines which register will be read
This register file can store eight 4-bit wide values
Which statement is true about the register file

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
