Question: WORK REQUIRED: Solve the following problem The lap joint shown in the figure below is fastened by three 2 0 mm diameter rivets. Determine the

WORK REQUIRED:
Solve the following problem

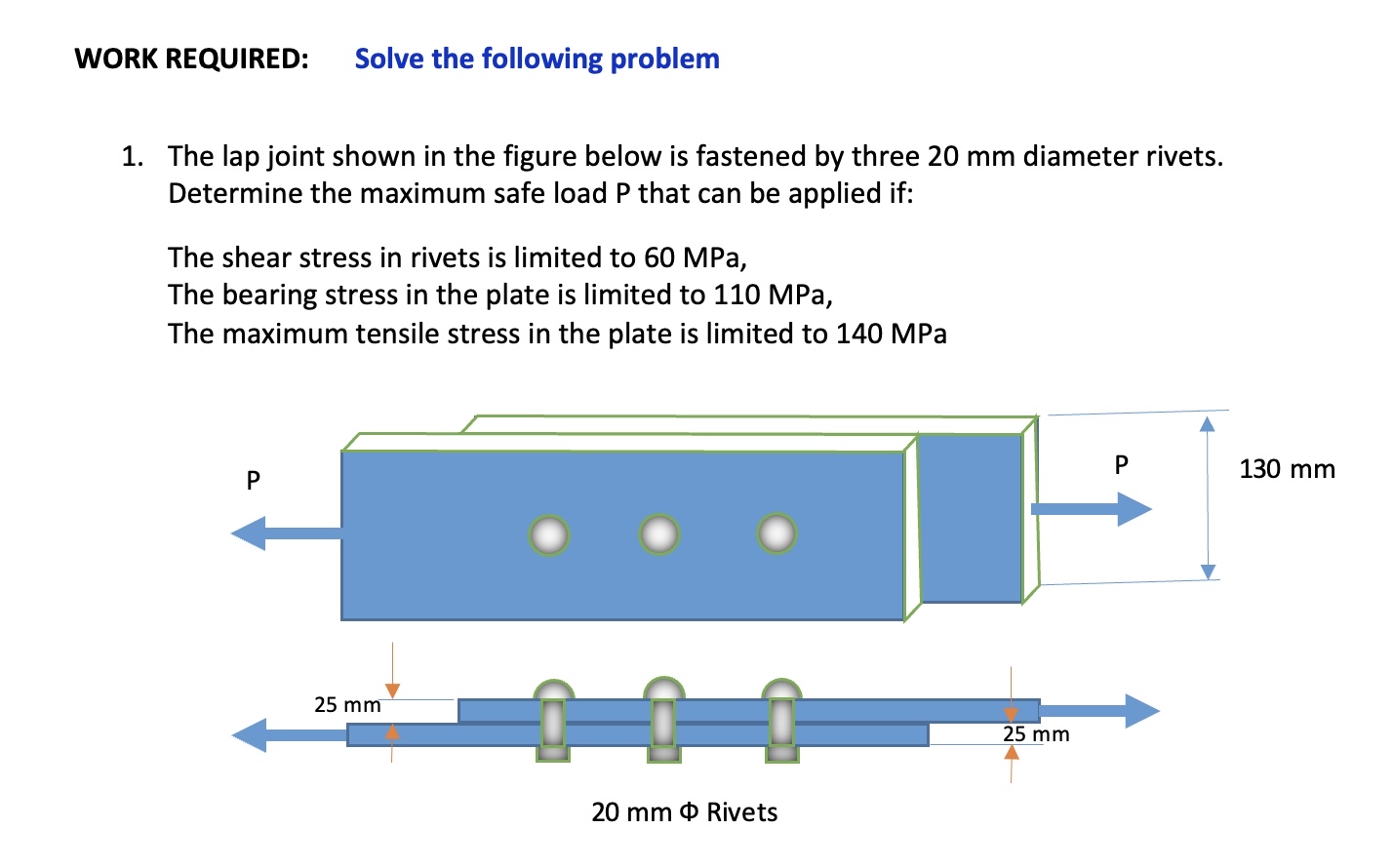

The lap joint shown in the figure below is fastened by three 20 mm diameter rivets. Determine the maximum safe load P that can be applied if:
The shear stress in rivets is limited to 60 MPa ,
The bearing stress in the plate is limited to 110 MPa ,
The maximum tensile stress in the plate is limited to 140 MPa
WORK REQUIRED:
Solve the following problem
The lap joint shown in the figure below is fastened by three 20 mm diameter rivets. Determine the maximum safe load P that can be applied if:
The shear stress in rivets is limited to 60 MPa ,
The bearing stress in the plate is limited to 110 MPa ,
The maximum tensile stress in the plate is limited to 140 MPa
WORK REQUIRED: Solve the following problem The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
