Question: Work sheet week 4 1; Consider the circuit shown in Figure 1. Assume E=15 V. {a} What is the equivalent capacitance? {b} What is the

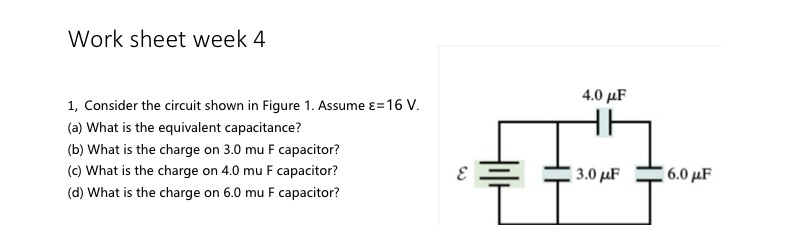

Work sheet week 4 1; Consider the circuit shown in Figure 1. Assume E=15 V. {a} What is the equivalent capacitance? {b} What is the charge on 311 mu F capacitor? {c} What is the charge on 4.0 mu F capacitor? {d} What is the charge on 5.13 mu F capacitor

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

1, Consider the circuit shown in Figure 1. Assume E=16 V. 4.0 HF (a) What is the equivalent capacitance? (b) What is the charge on 3.0 mu F capacitor? (c) What is the charge on 4.0 mu F capacitor?...

The rate at which the capacitor in a series RC circuit charges or discharges depends on the capacitance C of the capacitor and resistance R in the circuit. We define a time constant, T, as the time...

please make the answers clear for each question Consider the combination of capacitors in Figure P16.34 (C1 = 20.0 AUF, C2 = 3.00 AUF). 36 V 4.0 HF C2 8.0 HF Figure P16.34 (a) What is the equivalent...
