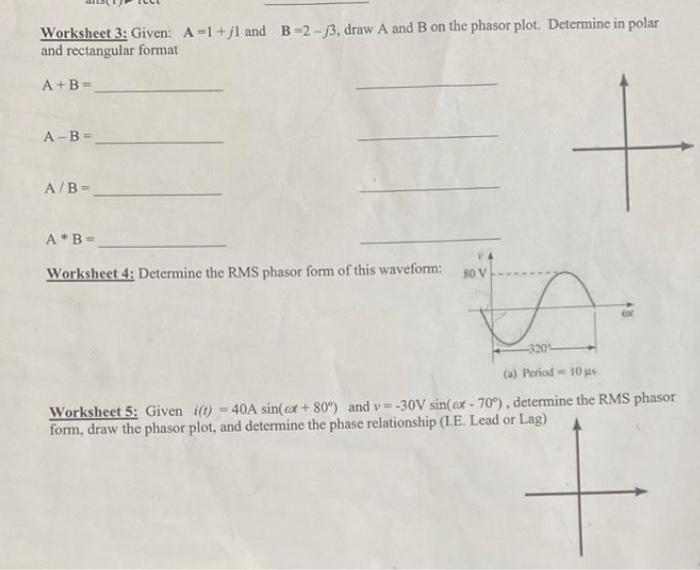

Question: Worksheet 3: Given: A=1 + jI and B-2-3. draw A and B on the phasor plot. Determine in polar and rectangular format A+B- A-B= A/B-

Worksheet 3: Given: A=1 + jI and B-2-3. draw A and B on the phasor plot. Determine in polar and rectangular format A+B- A-B= A/B- A B - Worksheet 4: Determine the RMS phasor form of this waveform: 80 V (a) Period 10 Worksheet 5: Given i(t) - 40A sin( ex +80") and y=-30V sin(ex - 70), determine the RMS phasor form, draw the phasor plot, and determine the phase relationship (I.E. Lead or Lag) 1 +

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
