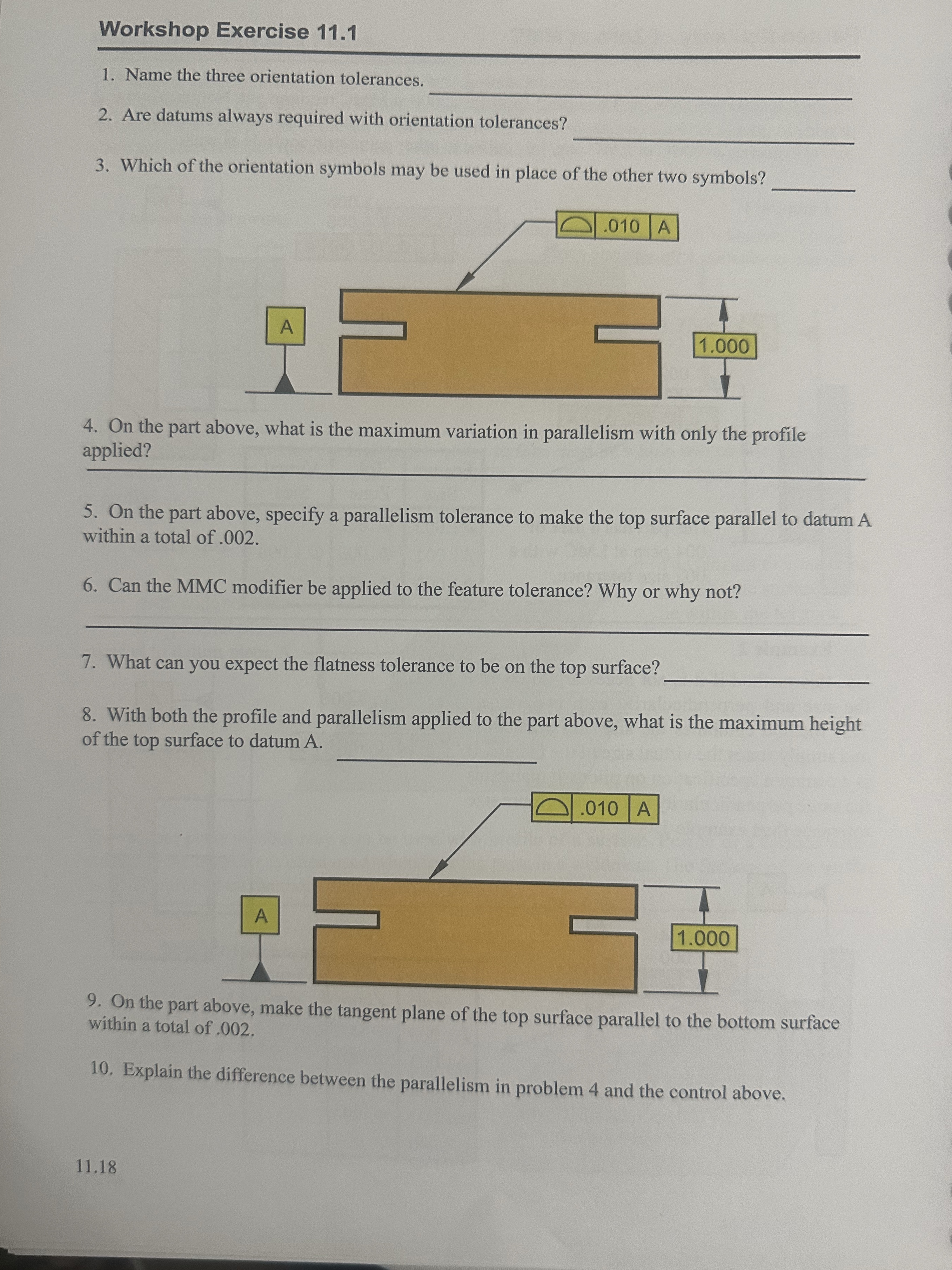

Workshop Exercise $11\mathrm{.}1$

Name the three orientation tolerances. $q,$

Are datums always required with orientation tolerances?

Which of the orientation symbols may be used in place of the other two symbols? $q,$

On the part above, what is the maximum variation in parallelism with only the profile applied?

On the part above, specify a parallelism tolerance to make the top surface parallel to datum A within a total of $\mathrm{.}002.$

Can the MMC modifier be applied to the feature tolerance? Why or why not?

$q,$

What can you expect the flatness tolerance to be on the top surface?

With both the profile and parallelism applied to the part above, what is the maximum height of the top surface to datum $A.q,$

$$ within a total of $\mathrm{.}002.$

Explain the difference between the parallelism in problem $4$ and the control above.

$11\mathrm{.}18$
