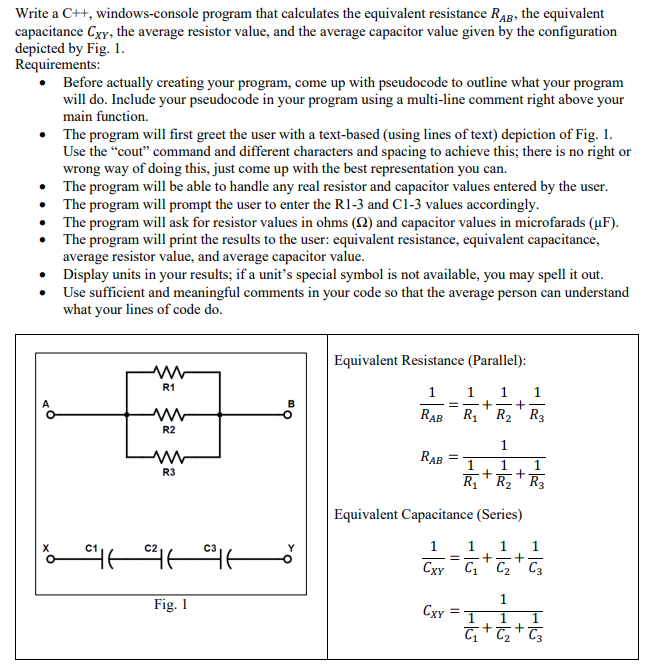

Write a $C++,$ windows$-$console program that calculates the equivalent resistance $R_{AB},$ the equivalent

capacitance $C_{xY},$ the average resistor value, and the average capacitor value given by the configuration

depicted by Fig. $1.$

Requirements:

Before actually creating your program, come up with pseudocode to outline what your program

will do$.$ Include your pseudocode in your program using a multi$-$line comment right above your

main function.

The program will first greet the user with a text$-$based $($using lines of text$)$ depiction of Fig. $1.$

Use the "cout" command and different characters and spacing to achieve this; there is no right or

wrong way of doing this, just come up with the best representation you can.

The program will be able to handle any real resistor and capacitor values entered by the user.

The program will prompt the user to enter the R$1-3$ and C$1-3$ values accordingly.

The program will ask for resistor values in ohms $()$ and capacitor values in microfarads $(F).$

The program will print the results to the user: equivalent resistance, equivalent capacitance,

average resistor value, and average capacitor value.

Display units in your results; if a unit's special symbol is not available, you may spell it out.

Use sufficient and meaningful comments in your code so that the average person can understand

what your lines of code do$.$

Equivalent Resistance $($Parallel$)$:

$\frac{1}{R_{AB}}=\frac{1}{R_1}+\frac{1}{R_2}+\frac{1}{R_3}$

$R_{AB}=\frac{1}{\frac{1}{R_1}+\frac{1}{R_2}+\frac{1}{R_3}}$

Equivalent Capacitance $($Series$)$

$\frac{1}{C_{xY}}=\frac{1}{C_1}+\frac{1}{C_2}+\frac{1}{C_3}$

$C_{xY}=\frac{1}{\frac{1}{C_1}+\frac{1}{C_2}+\frac{1}{C_3}}$
