Question: Write a simplified expression for the Boolean function defined by each of the following Kmaps. 6. Write a simplified expression for the Boolean function defined

Write a simplified expression for the Boolean function defined by each of the following Kmaps.

Write a simplified expression for the Boolean function defined by each of

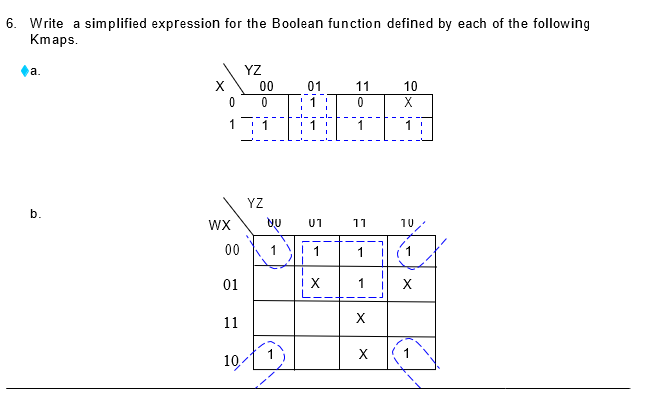

6. Write a simplified expression for the Boolean function defined by each of the following Kmaps YZ X00 01 1 10 YZ b. 01 10 11

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
