Question: Write an assembly program that meets these requirements: Starts the program code at address 0x0000. Initializes the Stack Pointer to the end of the AVR

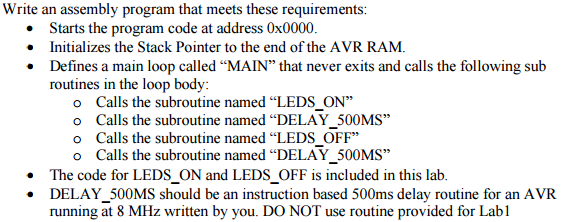

 Write an assembly program that meets these requirements: Starts the program

code at address 0x0000. Initializes the Stack Pointer to the end of

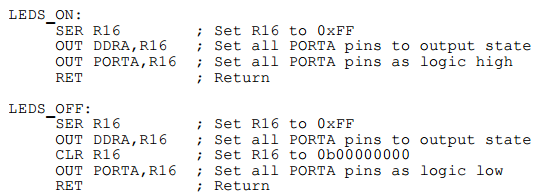

Write an assembly program that meets these requirements: Starts the program code at address 0x0000. Initializes the Stack Pointer to the end of the AVR RAM. Defines a main loop called "MAIN" that never exits and calls the following sub routines in the loop body: Calls the subroutine named "LEDS_ON" Calls the subroutine named "DELAY_500MS" Calls the subroutine named "LEDS_OFF" Calls the subroutine named "DELAY_500MS" The code for LEDS_ON and LEDS_OFF is included in this lab. DELAY_500MS should be an instruction based 500ms delay routine for an AVR running at 8 MHz written by you. DO NOT use routine provided for Lab 1 LEDS_ON: SER R16; Set R16 to 0xFF OUT DDRA, R16; Set all PORTA pins to output state OUT PORTA, R16; Set all PORTA pins as logic high RET; Return LEDS_OFF: SER R16; Set R16 to 0xFF OUT DDRA, R16;Set all PORTA pins to output state CLR R16; Set R16 to 0b00000000 OUT PORTA, R16;Set all PORTA pins as logic low RET; Return
