Question: Write and simplify the Boolean expression for following logic circuit and design the logic circuit. Minimize the following logic function using K - map and

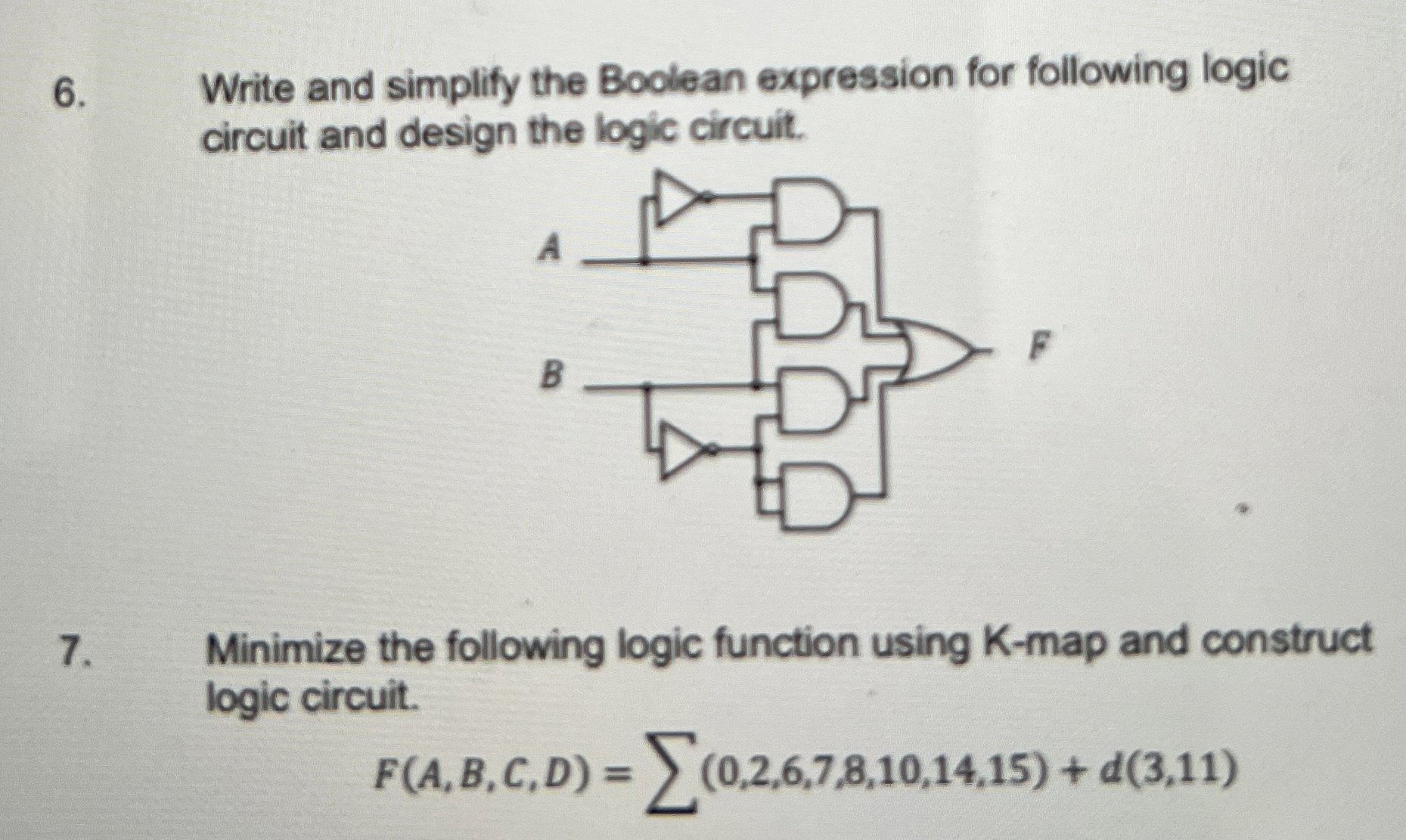

Write and simplify the Boolean expression for following logic circuit and design the logic circuit.
Minimize the following logic function using K -map and construct logic circuit.
F(A,B,C,D)=??(0,2,6,7,8,10,14,15)+d(3,11)
Write and simplify the Boolean expression for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

rr1 all questions should be answered correctly SECTION C 9 Foundations of Functional Programming Consider binary trees that are either empty (written Lf) or have the form Br x t1 t2 where t1 and t2...

Q:

Send the data using checksum method: 5, 10, 14, 20 2.1 (i) Send data using hamming code: 10001111 (ii) Check the received data is correct: AF93H (iii) (iv) 22 2.2 2.3 23 Check the received data sent...

Q:

bo f f DDB CO a.) Write the Boolean expression for the logic circuit given in Figure. b-) Obtain the Truth Table of the function. c-) Obtain Sum of Minterms Canonical form. d-) Obtain Simplified sum...

Q:

SCSR1013 DIGITAL LOGIC 2017/2018-1 PART B QUESTION 1 20 MARKS a) Given the following logic circuit: 1 B X C (i) Identify the two logic gates used in the circuit. [lm] (ii) Get the Boolean expression...

Q:

a) Given the following logic circuit B X (1) Identify the two logic gates used in the circuit. [lm] Get the Boolean expression for x [20] b) Give the complete truth table for XOR gate with 2 inputs...

Q:

Draw the logic circuit of number 4 and 5. 1. Plot the function in the map to simplify it. Consider the l's to obtain the SOP expression for the NAND-NAND network. Do the same with map of the NOR-NOR...

Q:

Any help with this would be great. We are using multimedia logic to build our circuits. | |Normal! 1 No Spac Heading 1 Heading 2 Title Subtitle Subtle Em Emphasis Intense E., Strong Styles Complete...

Q:

(a) Explain the following with relevant examples. (1) Functionally complete set (of logic gates), (3/100) (ii) Sequential circuits. (3/100) (b) Simplify the following expression using Boolean...

Q:

I need help with all 5 questions. For the first, it needs sort of a chart like the 3rd question 1. (15 pts) Determine the truth table for the following logic circuit. F 2. (15 pts) Given the...

Q:

Task 4 [30 marks Make a sequential counter that can loop through composite (ie, not prime) 4-bit numbers (use ABCD format) at each clock pulse. You should rely on D-flip-flops to represent each bit...
