WRITE EXECUTABLE MATLAB CODE

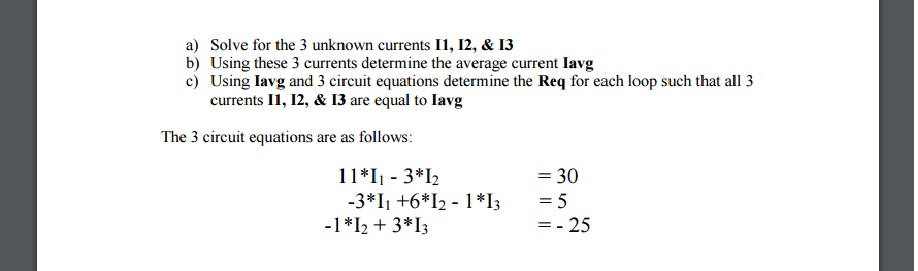

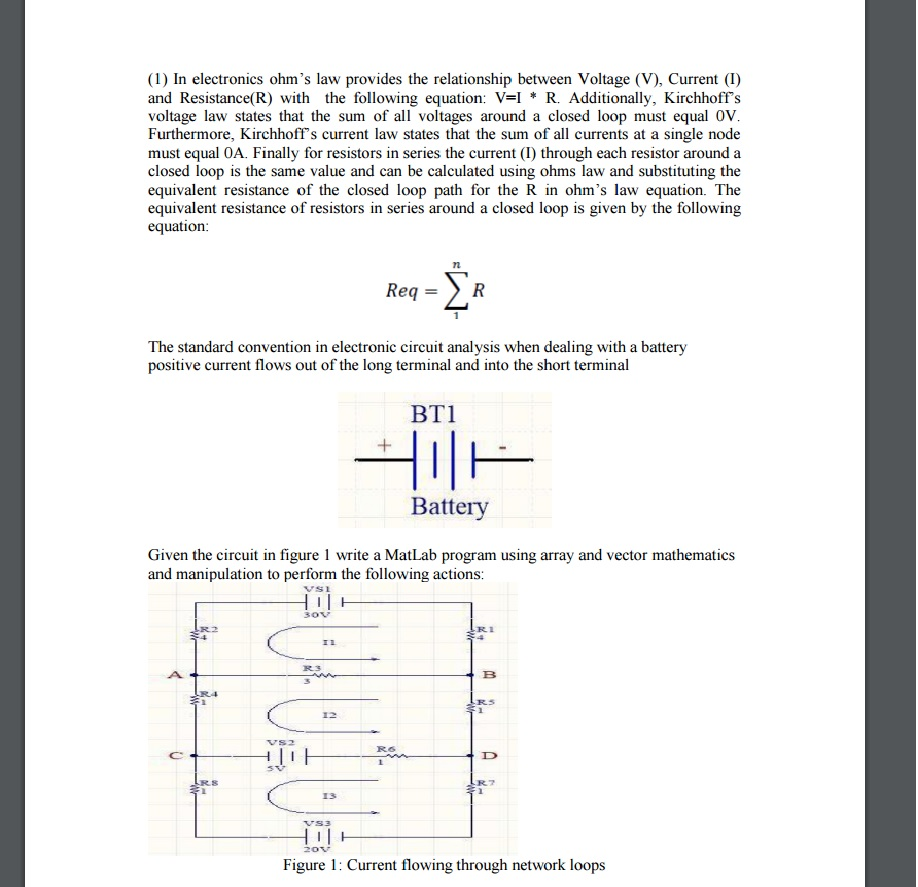

(1) In electronics ohm's law provides the relationship between Voltage (V), Current (I) and Resistance(R) with the following equation: V-I R. Additionally, Kirchhoffs voltage law states that the sum of all voltages around a closed loop must equal ov Furthermore, Kirchhoffs current law states that the sum of all currents at a single node must equal 0A. Finally for resistors in series the current (l) through each resistor around a closed loop is the same value and can be calculated using ohms law and substituting the equivalent resistance of the closed loop path for the R in ohm's law equation. The equivalent resistance of resistors in series around a closed loop is given by the following equation Req The standard convention in electronic circuit analysis when dealing with a battery positive current out of the long terminal and into the short terminal BT1 Battery Given the circuit in figure 1 write a MatLab program using array and vector mathematics and manipulation to perform the following actions VSI R3 R6 RS 2 DV Figure 1: Current flowing through network loops
