Write out the solution and steps please - don't show me something off another site or some copied/paste code.

FILL OUT THE ENTIRE QUESTION DON'T JUST SHOW ME WHAT YOU GOT OFF ANOTHER SITE OR ANOTHER CHEGG ANSWER PLEASE OR AI ANSWERS Please answer the question completely - Draw the diagram, the state transitions, and all listed.

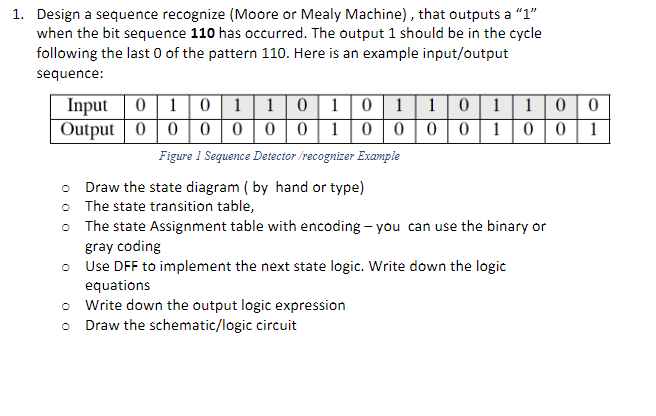

Design a sequence recognize (Moore or Mealy Machine), that outputs a "1" when the bit sequence 110 has occurred. The output 1 should be in the cycle following the last 0 of the pattern 110 . Here is an example input/output sequence: Figure I Sequence Detector /recognizer Example Draw the state diagram (by hand or type) The state transition table, The state Assignment table with encoding - you can use the binary or gray coding Use DFF to implement the next state logic. Write down the logic equations Write down the output logic expression Draw the schematic/logic circuit
